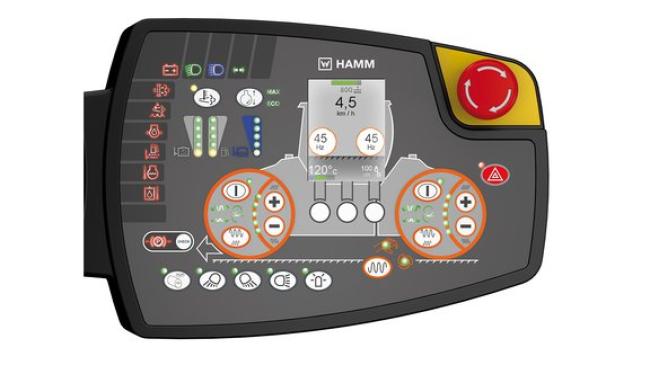

  • Operating concept Easy Drive
  • Digital ready
  • Seat-operating unit can be moved and rotated
  • Innovative cabin concept for optimal visibility and high comfort
  • 3-point articulation for even weight distribution and excellent directional stability

Specifications

BASIC DATA - Description:
Tandem roller with two vibrating roller drums
BASIC DATA - Exhaust emissions category:
EU Stage V / EPA Tier 4
BASIC DATA - Name:
HD+ 70i VV
BASIC DATA - Series:
HD+
DIESEL ENGINE - Cylinders, quantity:
4
DIESEL ENGINE - Exhaust emission standard:
EU Stage V / EPA Tier 4
DIESEL ENGINE - Exhaust gas after-treatment:
DOC-DPF
DIESEL ENGINE - Manufacturer:
DEUTZ
DIESEL ENGINE - Model:
TCD 2.9 L4
DIESEL ENGINE - Power ISO 14396, HP:
75.3 HP
DIESEL ENGINE - Power ISO 14396, kW:
55.4 kW
DIESEL ENGINE - Power ISO 14396, rpm:
2,300 rpm
DIESEL ENGINE - Power SAE J1349, HP:
74.2 hp
DIESEL ENGINE - Power SAE J1349, kW:
55.4 kW
DIESEL ENGINE - Power SAE J1349, rpm:
2,300 rpm
DRUM DIMENSIONS - Drum diameter, front:
44.9 in
DRUM DIMENSIONS - Drum diameter, rear:
44.9 in
DRUM DIMENSIONS - Drum thickness, front:
0.7 in
DRUM DIMENSIONS - Drum thickness, rear:
0.7 in
DRUM DIMENSIONS - Drum type, front:
Smooth/non-split
DRUM DIMENSIONS - Drum type, rear:
Smooth/non-split
DRUM DIMENSIONS - Drum width, front:
59.1 in
DRUM DIMENSIONS - Drum width, rear:
59.1 in
DRUM DIMENSIONS - Track offset, left:
5.3 in
MACHINE DIMENSIONS - Center distance:
131.5 in
MACHINE DIMENSIONS - Ground clearance, center:
13.4 in
MACHINE DIMENSIONS - Maximum working width:
64.4 in
MACHINE DIMENSIONS - Total height with cab:
113.8 in
MACHINE DIMENSIONS - Total height with ROPS:
116.9 in
MACHINE DIMENSIONS - Total length:
176.4 in
MACHINE DIMENSIONS - Total width with cab:
70.5 in
MACHINE DIMENSIONS - Turning radius, inside:
166.5 in
SOUND LEVEL - Sound power level L(WA), guaranteed:
106
STEERING - Steering, type:
Articulated steering
TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity:
31.7 gal
TANK CAPACITY/FILLING CAPACITY - Water tank, capacity:
184.9 gal
TRAVEL DRIVE - Climbing ability, without vibration:
47 %
TRAVEL DRIVE - Regulation, infinitely variable:
HAMMTRONIC
TRAVEL DRIVE - Speed, infinitely variable:
0,0 - 6,0
VIBRATION - Amplitude, front, I:
0.024 in
VIBRATION - Amplitude, front, II:
0.014 in
VIBRATION - Amplitude, rear, I:
0.024 in
VIBRATION - Amplitude, rear, II:
0.014 in
VIBRATION - Centrifugal force, front, I:
18,000 lbs
VIBRATION - Centrifugal force, front, II:
14,625 lbs
VIBRATION - Centrifugal force, rear, I:
18,000 lbs
VIBRATION - Centrifugal force, rear, II:
14,625 lbs
VIBRATION - Vibration frequency, front, I:
2,880 VPM
VIBRATION - Vibration frequency, front, II:
3,480 VPM
VIBRATION - Vibration frequency, rear, I:
2,880 VPM
VIBRATION - Vibration frequency, rear, II:
3,480 VPM
WATER-SPRINKLING SYSTEM - Water sprinkling, type:
Pressure
WEIGHTS - Axle load, front:
8,280 lbs
WEIGHTS - Axle load, rear:
8,136 lbs
WEIGHTS - Empty weight without cab, without ROPS:
14,443 lbs
WEIGHTS - Operating weight with cab:
16,416 lbs
WEIGHTS - Operating weight with ROPS:
16,019 lbs
WEIGHTS - Static linear load, front:
140.2 lbs/in

Links

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

HAMMTRONIC

HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
