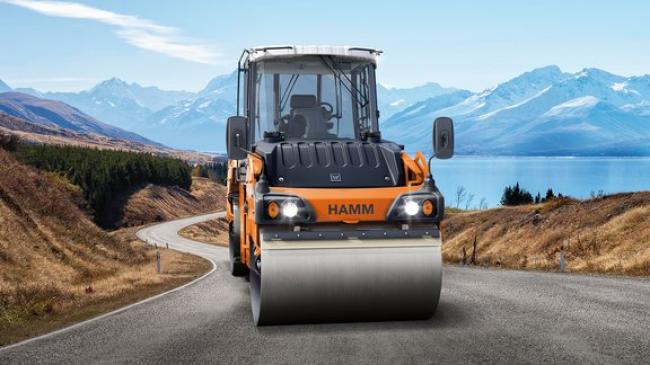

HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV
HD+ 140i VV

Highlights

  • 3-point articulation for even weight distribution and excellent on-centre feel
  • Operating concept Easy Drive
  • Electronic machine management Hammtronic
  • Excellent view of the machine and the construction site
  • Track offset for comfortable start up, moving away and compacting at curb edges

Features

  • Easy Drive: Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardised operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tyre rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics. Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardised operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tyre rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.

  • HAMM Compaction Quality (HCQ): HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. An panel PC (touchscreen) on the driver's platform then visualises the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time. HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. An panel PC (touchscreen) on the driver's platform then visualises the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.

  • HAMMTRONIC: HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, thereby increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programmes (for DV+ series only), guaranteeing even, smooth movement of both drums. HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, thereby increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programmes (for DV+ series only), guaranteeing even, smooth movement of both drums.

Specifications

Acoustic power LW(A), measured:
108 db(A)
Acoustic power LW(A), sticker:
109
AdBlue/DEF tank, content:
20 l
Amplitude, front, I:
0.86 mm
Amplitude, front, II:
0.33 mm
Centrifugal force, front, I:
180 kN
Centrifugal force, front, II:
95 kN
Climbing ability, with vibration:
39
Climbing ability, without vibration:
39 %
Curb clearance, rear:
900 mm
Description:
Tandem roller with two vibrating roller drums
Drum diameter, rear:
1,400 mm
Drum thickness, rear:
19 mm
Drum width, front:
2,140 mm
Exhaust emissions category:
EU Stage V / EPA Tier 4
Exhaust gas after-treatment:
DOC-DPF-SCR
French classific., data/class:
27,8/VT2
Fuel tank, capacity:
260 l
Max. working width:
2,310 mm
Name:
HD+ 140i VV
Number of cylinders:
4
Operating weight with cab:
12,985 kg
Operating weight with ROPS:
12,745 kg
Operating weight, max.:
13,800 kg
Oscillation angle +/-:
10 °
Power ISO 14396, HP:
156.4 HP
Power ISO 14396, rpm:
2,300 rpm
Power SAE J1349, HP:
154.1 hp
Power SAE J1349, kW:
115 kW
Series:
HD+
Series:
H274
Static linear load, front:
30.4 kg/cm
Static linear load, rear:
30.3
Total height with cab:
2,980 mm
Total length:
5,300 mm
Total width with cab:
2,260 mm
Track offset, left:
170 mm
Turning radius, inside:
6,200 mm
Version:
TCD 4.1 L4
Vibration frequency, front, I:
40 Hz
Vibration frequency, front, II:
50 Hz
Water tank, capacity:
1,145 l
Wheel base:
3,900 mm
