Highlights

  • 3-point articulation for even weight distribution and excellent on-centre feel
  • Track offset for comfortable start up, moving away and compacting at curb edges
  • Seat operating unit can be moved and rotated
  • Excellent view of the machine and the construction site

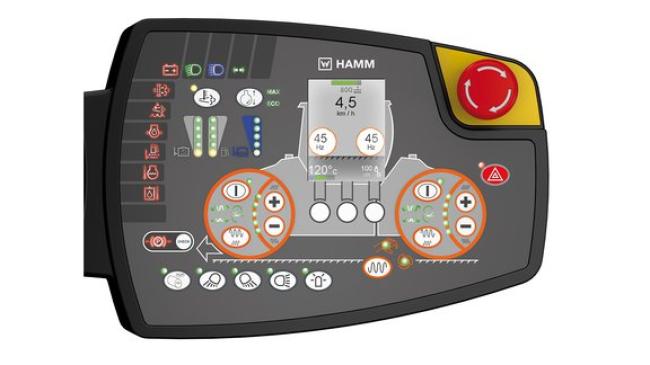

  • Simple, intuitive and language-neutral operation

Features

  • HAMM Compaction Quality (HCQ): HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. An panel PC (touchscreen) on the driver's platform then visualises the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time. HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. An panel PC (touchscreen) on the driver's platform then visualises the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.

  • HAMMTRONIC: HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, thereby increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programmes (for DV+ series only), guaranteeing even, smooth movement of both drums. HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, thereby increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programmes (for DV+ series only), guaranteeing even, smooth movement of both drums.

Specifications

Acoustic power LW(A), measured:
105 db(A)
Acoustic power LW(A), sticker:
106
Additive tank, capacity:
18 l
Amplitude, front, I:
0.63 mm
Amplitude, front, II:
0.35 mm
Centrifugal force, front, I:
84 kN
Centrifugal force, front, II:
69 kN
Climbing ability, with vibration:
38
Climbing ability, without vibration:
48 %
Curb clearance, rear:
750 mm
Description:
Tandem roller with vibrating roller drum and set of tyres
Drum diameter, front:
1,140 mm
Drum thickness, front:
17 mm
Drum width, front:
1,500 mm
Exhaust emissions category:
EU Stage V / EPA Tier 4
Exhaust gas after-treatment:
DOC-DPF
French classific., data/class:
19,8.8,2/VX1.PLO
Fuel tank, capacity:
120 l
Height loading, min.:
2,080 mm
Max. working width:
1,595 mm
Name:
HD+ 70i VT
Number of tyres, rear:
4
Operating weight with cab:
7,035 kg
Operating weight with ROPS:
6,865 kg
Operating weight, max.:
9,490 kg
Oscillation angle +/-:
10 °
Power ISO 14396, HP:
75.3 HP
Power ISO 14396, rpm:
2,300 rpm
Power SAE J1349, HP:
74.2 hp
Power SAE J1349, kW:
55.4 kW
Series:
HD+
Series:
H272
Size of tyres, rear:
11.00-20
Static linear load, front:
25 kg/cm
Total height with cab:
2,890 mm
Total length:
4,480 mm
Total width with cab:
1,790 mm
Track offset, left:
135 mm
Turning radius, inside:
4,230 mm
Version:
TCD 2.9 L4
Vibration frequency, front, I:
48 Hz
Vibration frequency, front, II:
58 Hz
Water tank, capacity:
700 l
Wheel base:
3,340 mm
Width over tyres, rear:
1,420 mm
