Coastline Equipment

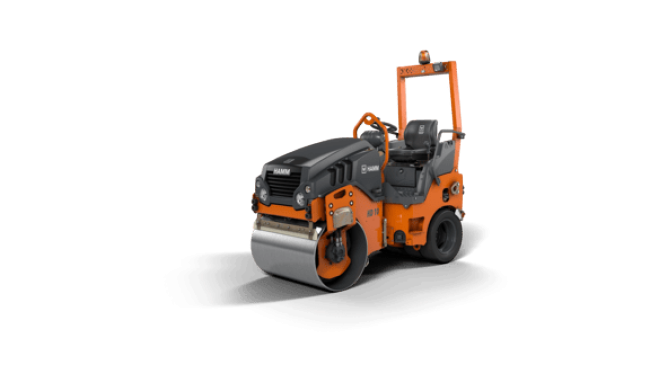

Hamm HD 10 VT

Series HD CompactLine

How can we help?

(208) 324-2900

Highlights

Simple, intuitive and language-neutral operation
Compact dimensions
Excellent view of the drum edges, the machine and the construction site surroundings
Ergonomic driver platform
Easy transport, simple loading

Highlights

Simple, intuitive and language-neutral operation
Compact dimensions
Excellent view of the drum edges, the machine and the construction site surroundings
Ergonomic driver platform
Easy transport, simple loading

Specifications
Downloads & Documentation

Specifications

Acoustic power LW(A), measured:	104 db(A)
Acoustic power LW(A), sticker:	106
Additive tank, capacity:	18 l
Amplitude, front, II:	0.45 mm
Centrifugal force, front, I:	33 kN
Centrifugal force, front, II:	20 kN
Climbing ability, with vibration:	30
Climbing ability, without vibration:	40 %
Curb clearance, rear:	570 mm
Description:	Tandem roller with vibrating roller drum and set of tyres
Drum diameter, front:	720 mm
Drum thickness, front:	15 mm
Drum width, front:	1,000 mm
Exhaust emissions category:	EU Stage V / EPA Tier 4
Exhaust gas after-treatment:	-
French classific., data/class:	12,1/PV2
Fuel tank, capacity:	42 l
Height loading, min.:	1,752 mm
Max. working width:	1,050 mm
Name:	HD 10 VT
Number of cylinders:	3
Number of tyres, rear:	4
Operating weight with ROPS:	2,385 kg
Operating weight, max.:	3,110 kg
Oscillation angle +/-:	8 °
Power ISO 14396, HP:	25.2 HP
Power ISO 14396, kW:	18.5 kW
Power SAE J1349, HP:	24.8 hp
Power SAE J1349, rpm:	2,200 rpm
Series:	HD CompactLine
Series:	H230
Size of tyres, rear:	205/60-R15
Speed, infinitely variable:	9.6
Static linear load, front:	12.1 kg/cm
Total height with ROPS:	2,475 mm
Total length:	2,530 mm
Total width:	1,110 mm
Track offset, left:	0 mm
Track offset, right:	50 mm
Turning radius, inside:	2,470 mm
Version:	D1703
Vibration frequency, front, I:	65 Hz
Vibration frequency, front, II:	51 Hz
Water tank, capacity:	180 l
Wheel base:	1,700 mm
