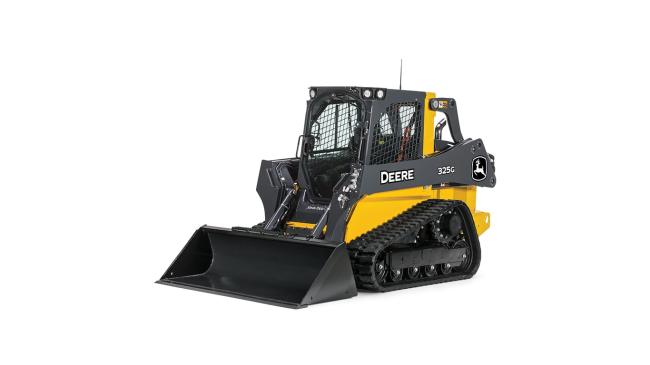

325G Compact Track Loader
  • Rated Operating Capacity: 1176 kg (2,590 lb.)
  • Gross Horsepower: 54.8 kW (74 hp)
  • Net Horsepower: 52.5 kW (70 net hp)
  • Operating Weight: 4313 kg (9,500 lb.)

Features

  • OPERATING WEIGHT: 4313 kg (9,500 lb.)

  • GROSS HORSEPOWER: 54.8 kW (74 hp)

  • NET HORSEPOWER: 52.5 kW (70 hp)

  • LIFT HEIGHT: 3.20 m (126.1 in.) (10 ft. 6 in.)

  • RATED OPERATING CAPACITY: 1176 kg (2,590 lb.)

  • BUCKET BREAKOUT FORCE: 2724 kg (6,000 lb.)

Specifications

CAPACITIES - Fuel Tank, ltr (gallons (US)):
79 (21)
DESCRIPTION - Lift Geometry:
Vertical
DIMENSIONS - Dump Angle, °:
41
DIMENSIONS - Dump Height - Maximum, mm (inches):
2590 (102.1)
DIMENSIONS - Ground Clearance, mm (inches):
240 (9.3)
DIMENSIONS - Height - Top Of Cab, mm (inches):
2060 (81.1)
DIMENSIONS - Height to Hinge Pin, mm (inches):
3200 (126.1)
DIMENSIONS - Length - No Bucket, mm (inches):
2850 (112.3)
DIMENSIONS - Length - With Bucket, mm (inches):
3460 (136.3)
DIMENSIONS - Rear Departure Angle, °:
30.5
DIMENSIONS - Rollback - Ground Level, °:
34
DIMENSIONS - Track Gauge, mm (inches):
1500 (58.9)
DIMENSIONS - Width - No Bucket, mm (inches):
1820 (71.5)
DRIVELINE - Aspiration:
Turbo
DRIVELINE - Displacement, ltr (Inches³):
3.3 (203)
DRIVELINE - Emission Rating:
Tier 4
DRIVELINE - Engine Manufacturer :
Yanmar
DRIVELINE - Engine Model:
4TNV98CT
DRIVELINE - Engine Output - Gross, kW (hp):
54.8 (74)
DRIVELINE - Engine Output - Net, kW (hp):
52.5 (70)
DRIVELINE - Rated Speed, rpm:
2500
DRIVELINE - Torque, Nm (lbf / ft):
280 (207)
DRIVELINE - Track Shoe Width, mm (inches):
320 (12.6)
PERFORMANCE - Breakout - Bucket, kN (lbf):
38.9 (8750)
PERFORMANCE - Breakout - Lift, kN (lbf):
23.3 (5250)
PERFORMANCE - Ground Bearing Pressure, kPa (PSI):
39.3 (5.7)
PERFORMANCE - Hydraulic Power - Option, kW (hp):
39.645 (53.1)
PERFORMANCE - Hydraulic Power, kW (hp):
27.477 (36.8)
PERFORMANCE - Pump Flow - Option, lt/min (gallons (US) / min):
101 (27)
PERFORMANCE - Pump Flow, lt/min (gallons (US) / min):
70 (19)
PERFORMANCE - Rated Operating Capacity, kg (lbs):
1176 (2590)
PERFORMANCE - Speed - Maximum Option, kph (mph):
13.2 (8.2)
PERFORMANCE - Speed - Maximum, kph (mph):
9.3 (5.8)
PERFORMANCE - System Pressure, bar (PSI):
237.87 (3450)
PERFORMANCE - Tipping Load, kg (lbs):
3360 (7400)
WEIGHTS - Operating Weight, kg (lbs):
4313 (9500)

Productivity

  • Industry-leading bucket breakout forces and auxiliary flow

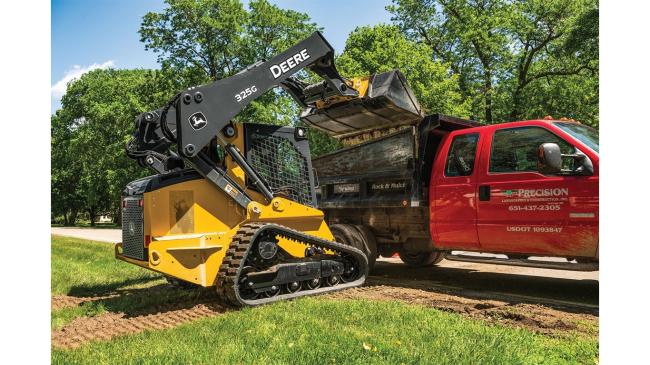

  • The 325G’s height to hinge pin is 10 ft. 6 in. to easily load high-sidewall dump trucks, feed mixers, and hoppers.

Uptime

  • Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
  • Optional JDLink™ provides machine data and health alerts to help you decrease costly downtime.

Cab & Controls

  • Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
  • Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
  • Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.

Engine

  • Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.
