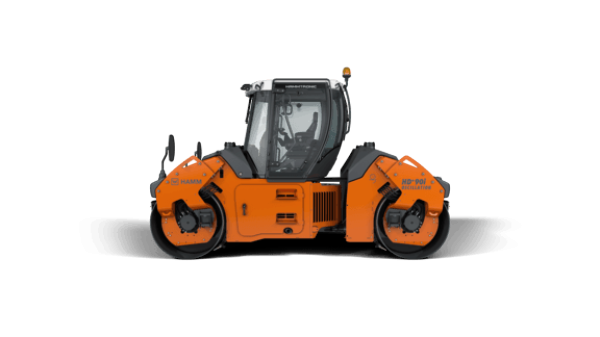

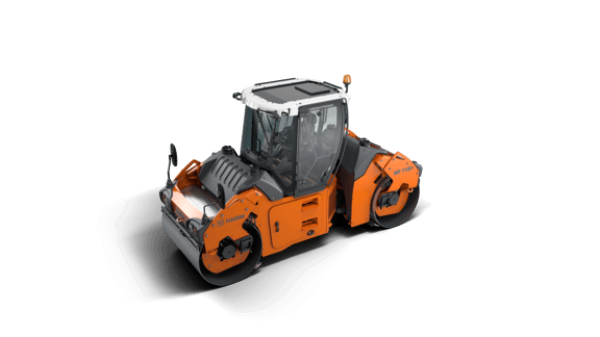

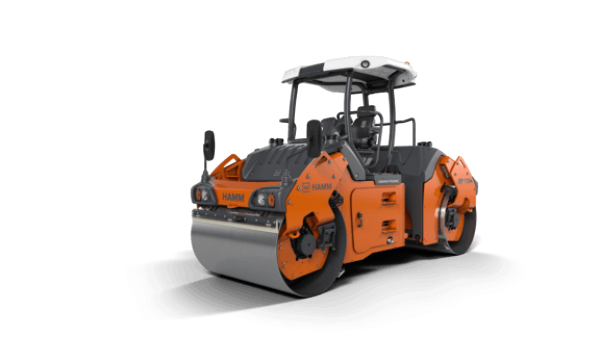

Hamm HD+ 90i VT-S

Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Make Hamm
Model HD+ 90i VT-S
Type Series HD+

How can we help?


Description

Highlights

  • 3-point articulation for even weight distribution and excellent on-centre feel
  • Track offset for comfortable start up, moving away and compacting at curb edges
  • Excellent view of the machine and the construction site
  • Electronic machine management Hammtronic
  • Operating concept Easy Drive

Specifications

  • Acoustic power LW(A), measured: 106 db(A)
  • Acoustic power LW(A), sticker: 107
  • AdBlue/DEF tank, content: 20 l
  • Additive tank, capacity: 22 l
  • Amplitude, front, I: 0.61 mm
  • Amplitude, front, II: 0.4 mm
  • Centrifugal force, front, I: 84 kN
  • Centrifugal force, front, II: 78 kN
  • Climbing ability, with vibration: 30
  • Climbing ability, without vibration: 40 %
  • Curb clearance, left: 800 mm

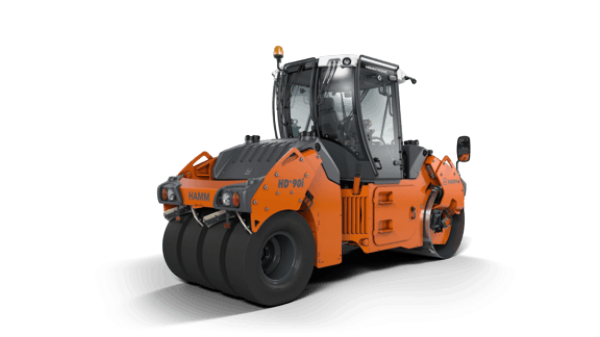

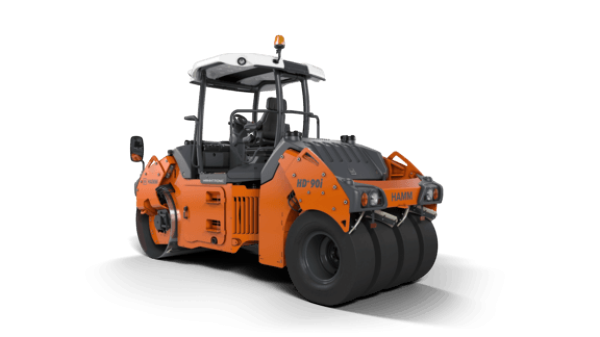

  • Description: Tandem roller with vibrating roller drum and set of tyres
  • Drum diameter, front: 1,200 mm
  • Drum thickness, front: 17 mm
  • Drum width, front: 1,680 mm
  • Emission standard: EU Stage IV / EPA Tier 4
  • Exhaust gas after-treatment: DOC-SCR
  • French classific., data/class: 23,0.10,3/VX1.PLO
  • Fuel tank, capacity: 173 l
  • Height loading, min.: 2,226 mm
  • Max. working width: 1,820 mm
  • Name: HD+ 90i VT-S
  • Number of tyres, rear: 4
  • Operating weight with cab: 9,060 kg
  • Operating weight with ROPS: 8,890 kg
  • Operating weight, max.: 11,620 kg
  • Oscillation angle +/-: 10 °
  • Power ISO 14396, HP: 115.6 HP
  • Power ISO 14396, kW: 85 kW
  • Power ISO 14396, rpm: 2,300 rpm
  • Power SAE J1349, HP: 113.9 hp
  • Series: HD+
  • Series: H242
  • Size of tyres, rear: 11.00-20
  • Speed, transportation gear: 0-11,0
  • Speed, working gear, I: 0-6,0
  • Static linear load, front: 29.2 kg/cm
  • Total height with cab: 3,010 mm
  • Total length: 4,900 mm
  • Total width with cab: 1,800 mm
  • Track offset, left: 170 mm
  • Turning radius, inside: 6,050 mm
  • Version: TCD 3.6 L4
  • Vibration frequency, front, I: 42 Hz
  • Vibration frequency, front, II: 50 Hz
  • Water tank, capacity: 760 l
  • Wheel base: 3,700 mm
  • Width over tyres, rear: 1,620 mm

Features

  • Split drum: When negotiating corners and roundabouts and when performing tight steering manoeuvres, attempting to perform compaction can lead to material being displaced and cracks forming on the surface. A split drum prevents this from occurring as the two halves rotate at different speeds. This minimises shear stress on the asphalt and avoids surface cracks and material being displaced. With the split oscillation drum, HAMM also offers a technology that combines the advantages of a split drum with those of oscillation. The result: Maximum compaction quality. When negotiating corners and roundabouts and when performing tight steering manoeuvres, attempting to perform compaction can lead to material being displaced and cracks forming on the surface. A split drum prevents this from occurring as the two halves rotate at different speeds. This minimises shear stress on the asphalt and avoids surface cracks and material being displaced. With the split oscillation drum, HAMM also offers a technology that combines the advantages of a split drum with those of oscillation. The result: Maximum compaction quality.
  • HAMM Compaction Quality (HCQ): HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. An panel PC (touchscreen) on the driver's platform then visualises the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time. HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. An panel PC (touchscreen) on the driver's platform then visualises the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
  • Easy Drive: Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardised operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tyre rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics. Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardised operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tyre rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
  • HAMMTRONIC: HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, thereby increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programmes (for DV+ series only), guaranteeing even, smooth movement of both drums. HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, thereby increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programmes (for DV+ series only), guaranteeing even, smooth movement of both drums.
