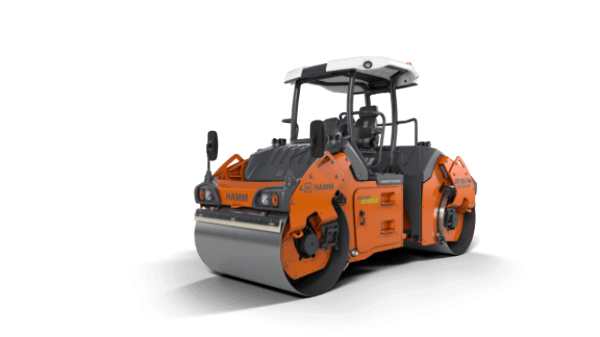

Hamm HD+ 90i PH VT-S

Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Make Hamm
Model HD+ 90i PH VT-S
Type Series HD+

How can we help?


Description

Highlights

  • Operating concept Easy Drive
  • 3-point articulation for even weight distribution and excellent directional stability

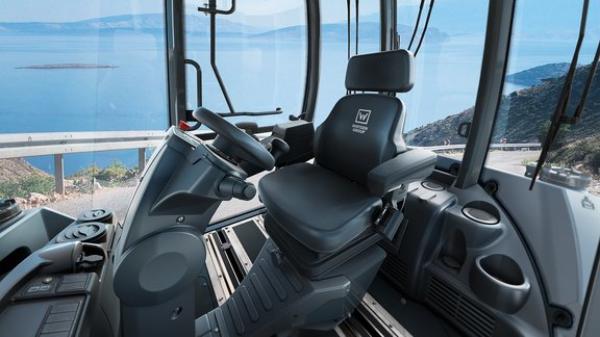

  • Excellent view of machine and construction site
  • Electronic machine management Hammtronic
  • Hydraulic hybrid drive

Models

Split drum

When negotiating corners and roundabouts and when performing tight steering maneuvers, attempting to perform compaction without twin drums can lead to material being displaced and cracks forming on the surface. A split drum prevents this from occurring as the two halves rotate at different speeds. This minimizes shear stress on the asphalt and avoids surface cracks and material being displaced. With the split oscillation drum, HAMM also offers a technology that combines the advantages of a split drum with those of oscillation. The result: Maximum compaction quality.

Three-point articulation

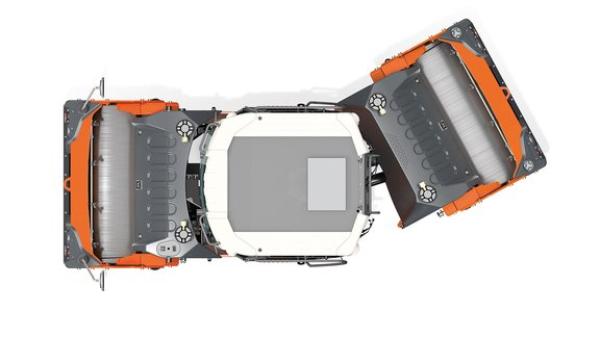

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

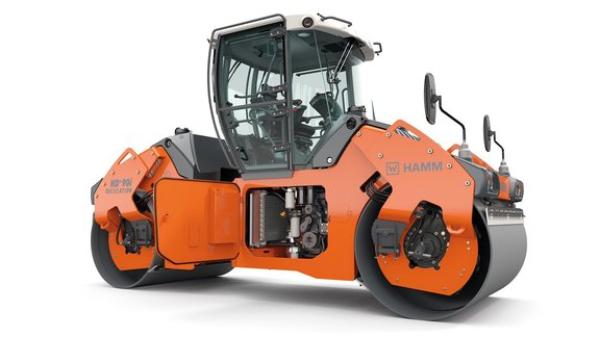

Power Hybrid

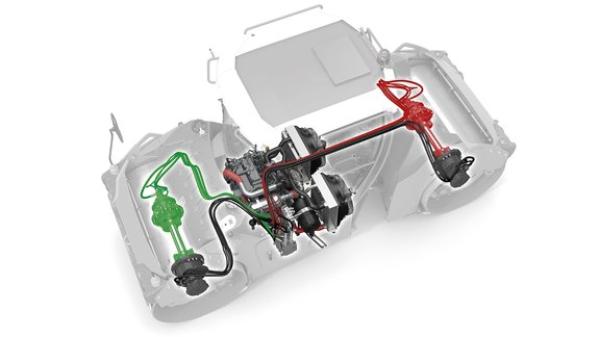

With the 9 t HD+ 90i PH tandem roller (EPA Tier 4/EU Stage V), HAMM combines a traditional combustion engine with a hydraulic accumulator. While the diesel unit provides the basic load, the hydraulic accumulator is able to cover peak loads, such as start-up or activating vibration/oscillation, by providing an additional 20 kW of power at short notice. After this maximal load has been generated, the hydraulic accumulator is recharged via a pump. In this way, the machine provides full compaction power while simultaneously saving fuel.

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

HAMMTRONIC

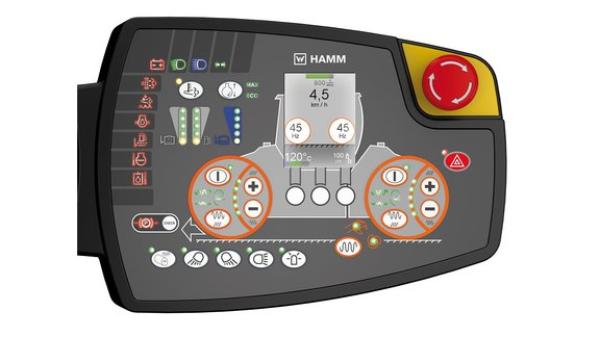

HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.

Specifications

  • BASIC DATA - Description: Tandem roller with vibrating roller drum and set of wheels
  • BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
  • BASIC DATA - Name: HD+ 90i PH VT-S
  • BASIC DATA - Series: HD+
  • DIESEL ENGINE - Cylinders, quantity: 4
  • DIESEL ENGINE - Exhaust emission standard: EU Stage V / EPA Tier 4
  • DIESEL ENGINE - Exhaust gas after-treatment: DOC-DPF
  • DIESEL ENGINE - Manufacturer: DEUTZ
  • DIESEL ENGINE - Model: TCD 2.9 L4
  • DIESEL ENGINE - Power ISO 14396, HP: 75.3 HP
  • DIESEL ENGINE - Power ISO 14396, kW: 55.4 kW
  • DIESEL ENGINE - Power ISO 14396, rpm: 2,300 rpm
  • DIESEL ENGINE - Power SAE J1349, HP: 74.2 hp
  • DIESEL ENGINE - Power SAE J1349, kW: 55.4 kW
  • DIESEL ENGINE - Power SAE J1349, rpm: 2,300 rpm
  • DRUM DIMENSIONS - Drum diameter, front: 47.2 in
  • DRUM DIMENSIONS - Drum thickness, front: 0.7 in
  • DRUM DIMENSIONS - Drum type, front: Smooth/split
  • DRUM DIMENSIONS - Drum width, front: 66.1 in
  • DRUM DIMENSIONS - Track offset, left: 6.7 in
  • MACHINE DIMENSIONS - Center distance: 141.7 in
  • MACHINE DIMENSIONS - Curb clearance, left: 31.5 in
  • MACHINE DIMENSIONS - Curb clearance, rear: 31.5 in
  • MACHINE DIMENSIONS - Maximum working width: 71.7 in
  • MACHINE DIMENSIONS - Total height with cab: 118.5 in
  • MACHINE DIMENSIONS - Total length: 189 in
  • MACHINE DIMENSIONS - Total width with cab: 70.9 in
  • MACHINE DIMENSIONS - Turning radius, inside: 232.3 in
  • SOUND LEVEL - Acoustic power LW(A), measured: 103 db(A)
  • SOUND LEVEL - Sound power level L(WA), guaranteed: 106
  • STEERING - Oscillation angle +/-: 10 °
  • STEERING - Steering, type: Articulated steering
  • TANK CAPACITY/FILLING CAPACITY - Additive tank, capacity: 5.8 gal
  • TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 45.7 gal
  • TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: 200.8 gal
  • TIRE DIMENSIONS - Number of tires, rear: 4
  • TIRE DIMENSIONS - Tire size, rear: 11.00-20
  • TIRE DIMENSIONS - Width over tires, rear: 63.8 in
  • TRAVEL DRIVE - Climbing ability, with vibration: -
  • TRAVEL DRIVE - Regulation, infinitely variable: HAMMTRONIC
  • TRAVEL DRIVE - Speed, transport gear: 0,0-7,5
  • TRAVEL DRIVE - Speed, working gear, I: 0,0-3,7
  • VIBRATION - Amplitude, front, I: 0.024 in
  • VIBRATION - Amplitude, front, II: 0.016 in
  • VIBRATION - Centrifugal force, front, I: 18,900 lbs
  • VIBRATION - Centrifugal force, front, II: 17,550 lbs
  • VIBRATION - Vibration frequency, front, I: 2,520 VPM
  • VIBRATION - Vibration frequency, front, II: 3,000 VPM
  • WATER-SPRINKLING SYSTEM - Water sprinkling, type: Pressure
  • WEIGHTS - Operating weight with cab: 19,757 lbs
  • WEIGHTS - Operating weight with ROPS: 19,382 lbs
  • WEIGHTS - Static linear load, front: 163.5 lbs/in
