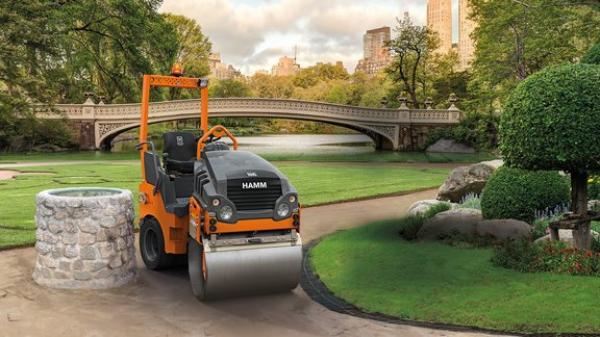

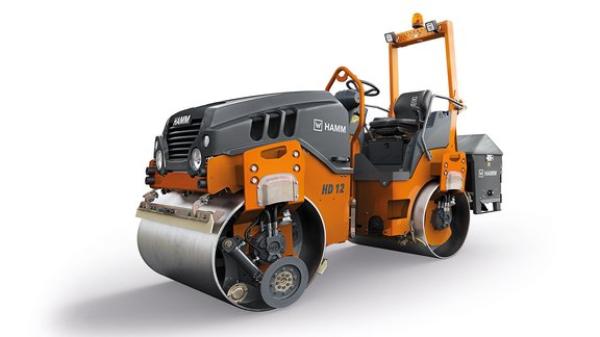

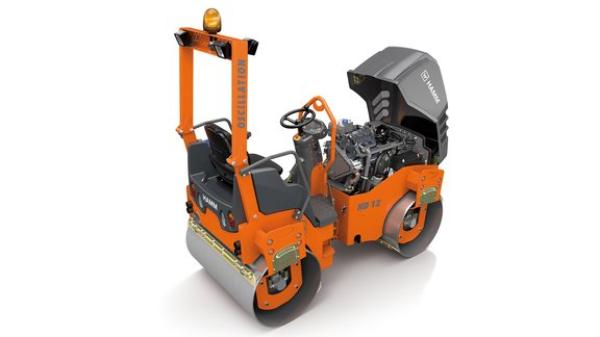

Hamm HD 12i VV
| Make | Hamm |
| Model | HD 12i VV |
| Type | Series HD CompactLine |
How can we help?
Description
Highlights
-
Simple, intuitive and language-neutral operation
-
Easy transport, simple loading
-
Ergonomic driver platform
-
Excellent view of the drum edges, the machine and the construction site surroundings
-
Compact dimensions
Specifications
- Acoustic power LW(A), measured: 102 db(A)
- Acoustic power LW(A), sticker: 106
- Amplitude, rear, I: 0.45 mm
- Centrifugal force, front, I: 49 kN
- Centrifugal force, rear, II: 30 kN
- Climbing ability, with vibration: 30
- Climbing ability, without vibration: 40 %
- Curb clearance, rear: 570 mm
- Description: Tandem roller with two vibrating roller drums
- Drum diameter, rear: 720 mm
- Drum thickness, rear: 15 mm
- Drum width, rear: 1,200 mm
- Exhaust emissions category: EU Stage V / EPA Tier 4
- Exhaust gas after-treatment: DOC-DPF
- French classific., data/class: 11,3/PV3
- Fuel tank, capacity: 42 l
- Height loading, min.: 1,752 mm
- Max. working width: 1,250 mm
- Name: HD 12i VV
- Number of cylinders: 3
- Operating weight with ROPS: 2,695 kg
- Operating weight, max.: 3,410 kg
- Oscillation angle +/-: 8 °
- Power ISO 14396, HP: 32.6 HP
- Power ISO 14396, kW: 24 kW
- Power SAE J1995, HP: 32.2 hp
- Power SAE J1995, rpm: 2,200 rpm
- Series: HD CompactLine
- Series: H251
- Speed, infinitely variable: 10.2
- Static linear load, front: 11.1 kg/cm
- Static linear load, rear: 11.3
- Total height with ROPS: 2,475 mm
- Total length: 2,530 mm
- Total width: 1,310 mm
- Track offset, left: 0 mm
- Track offset, right: 50 mm
- Turning radius, inside: 2,370 mm
- Version: D1803-CR
- Vibration frequency, front, I: 65 Hz
- Vibration frequency, rear, II: 51 Hz
- Water tank, capacity: 180 l
- Wheel base: 1,700 mm
