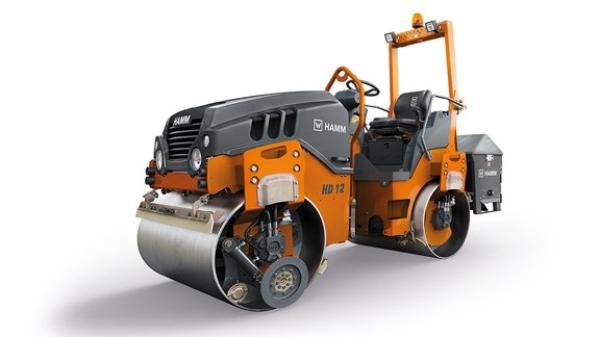

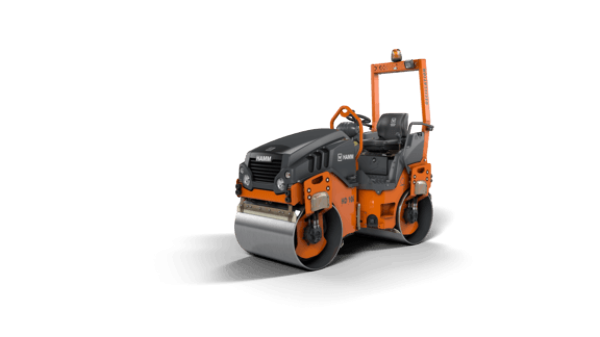

Hamm HD 12i VT

Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Make Hamm
Model HD 12i VT
Type Series HD CompactLine

How can we help?


Description

Highlights

  • Excellent view of drum edge, machine and construction site environment
  • Ergonomic driver platform
  • Simple transport, simple loading
  • Simple, intuitive and language-neutral control
  • Compact dimensions

Specifications

  • BASIC DATA - Description: Tandem roller with vibrating roller drum and set of wheels
  • BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
  • BASIC DATA - Name: HD 12i VT
  • BASIC DATA - Series: H251
  • DIESEL ENGINE - Cylinders, quantity: 3
  • DIESEL ENGINE - Exhaust emission standard: EU Stage V / EPA Tier 4
  • DIESEL ENGINE - Exhaust gas after-treatment: DOC-DPF
  • DIESEL ENGINE - Manufacturer: KUBOTA
  • DIESEL ENGINE - Model: D1803-CR-E5B
  • DIESEL ENGINE - Power ISO 14396, HP: 33.4 HP
  • DIESEL ENGINE - Power ISO 14396, kW: 24.6 kW
  • DIESEL ENGINE - Power ISO 14396, rpm: 2,400 rpm
  • DIESEL ENGINE - Power SAE J1995, HP: 33.5 hp
  • DIESEL ENGINE - Power SAE J1995, kW: 25 kW
  • DIESEL ENGINE - Power SAE J1995, rpm: 2,400 rpm
  • DRUM DIMENSIONS - Drum diameter, front: 28.3 in
  • DRUM DIMENSIONS - Drum thickness, front: 0.6 in
  • DRUM DIMENSIONS - Drum type, front: Smooth/non-split
  • DRUM DIMENSIONS - Drum width, front: 47.2 in
  • DRUM DIMENSIONS - Track offset, left: 0 in
  • DRUM DIMENSIONS - Track offset, right: 2 in
  • MACHINE DIMENSIONS - Center distance: 66.9 in
  • MACHINE DIMENSIONS - Curb clearance, left: 22.4 in
  • MACHINE DIMENSIONS - Curb clearance, rear: 22.4 in
  • MACHINE DIMENSIONS - Ground clearance, center: 11 in
  • MACHINE DIMENSIONS - Maximum working width: 48 in
  • MACHINE DIMENSIONS - Total height with ROPS: 97.4 in
  • MACHINE DIMENSIONS - Total length: 99.6 in
  • MACHINE DIMENSIONS - Total width: 51.6 in
  • MACHINE DIMENSIONS - Turning radius, inside: 93.3 in
  • SOUND LEVEL - Acoustic power LW(A), measured: 102 db(A)
  • SOUND LEVEL - Sound power level L(WA), guaranteed: 106
  • STEERING - Oscillation angle +/-: 8 °
  • STEERING - Steering, type: Articulated steering
  • TANK CAPACITY/FILLING CAPACITY - Additive tank, capacity: 4.8 gal
  • TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 11.1 gal
  • TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: 47.6 gal
  • TIRE DIMENSIONS - Number of tires, rear: 4
  • TIRE DIMENSIONS - Tire size, rear: 9,5/65-15
  • TIRE DIMENSIONS - Width over tires, rear: 44.9 in
  • TRAVEL DRIVE - Climbing ability, with vibration: 30
  • TRAVEL DRIVE - Climbing ability, without vibration: 40 %
  • TRAVEL DRIVE - Speed, infinitely variable: 0,0 - 6,5
  • VIBRATION - Amplitude, front, I: 0.018 in
  • VIBRATION - Amplitude, front, II: 0.018 in
  • VIBRATION - Centrifugal force, front, I: 11,025 lbs
  • VIBRATION - Centrifugal force, front, II: 6,750 lbs
  • VIBRATION - Vibration frequency, front, I: 3,900 VPM
  • VIBRATION - Vibration frequency, front, II: 3,060 VPM
  • WATER-SPRINKLING SYSTEM - Water sprinkling, type: Pressure
  • WEIGHTS - Operating weight with ROPS: 5,722 lbs
  • WEIGHTS - Static linear load, front: 62.7 lbs/in
