Vogele SB350TV
| Make | Vogele |
| Model | SB350TV |
| Type | Fixed-Width Screeds |
How can we help?
Description

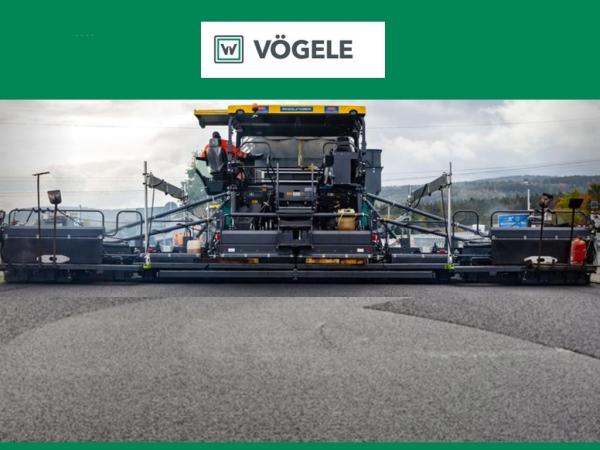

SB350 TV — FIXED-WIDTH SCREED

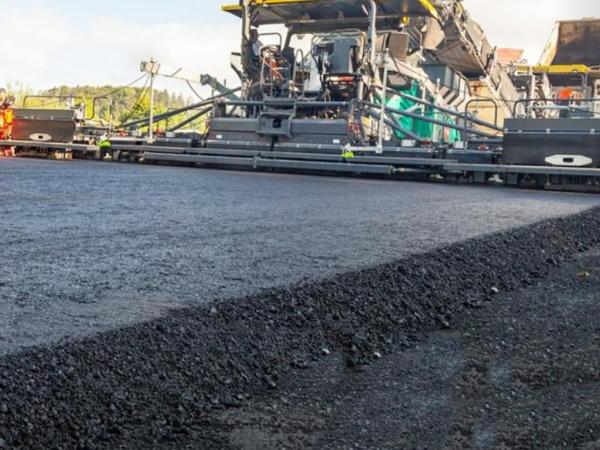

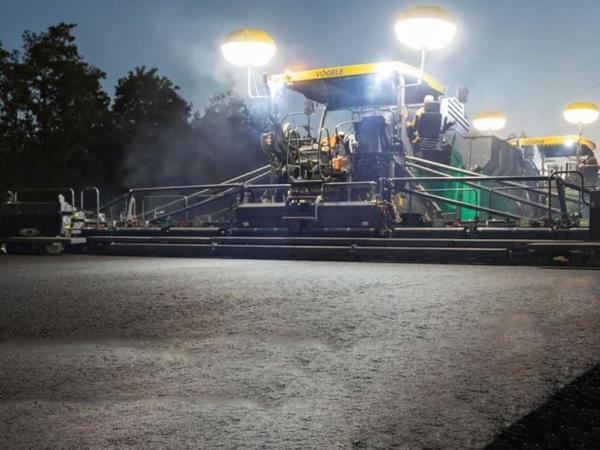

The SB 350 Fixed-width Screed from VÖGELE delivers absolutely premium-quality, perfectly even results. It comes into its own on any project requiring large pave widths and layer thicknesses (e.g. crushed-stone bases) with high pre-compaction values. The SB 350 has an impressive selection of pave widths ranging from 3.5 m to 18 m. What is more, the SB 350 and the SUPER 3000-3(i) can handle layer thicknesses up to 50 cm.
HIGHLIGHTS
NEW TELESCOPING AND POSITIONING SYSTEM
A newly-developed telescoping and positioning system simplifies correct assembly of the individual extensions, considerably reducing set-up time.

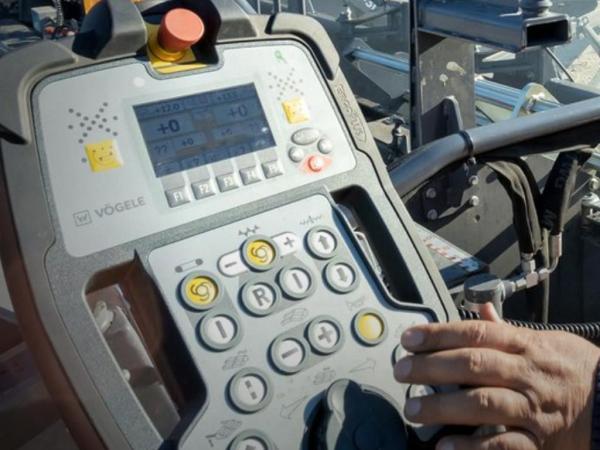

ERGONOMIC SCREED OPERATOR'S CONSOLE
The height and orientation of the console are easy to adjust. The high-contrast colour display can be read clearly from all angles.
HYDRAULIC TAMPER STROKE ADJUSTMENT
Tamper stroke (4 or 8 mm) can be adjusted conveniently at the touch of a button.

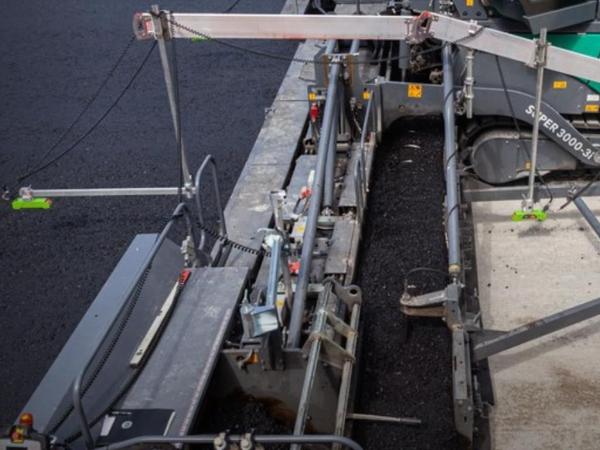

BOLT-ON EXTENSIONS
Maximum flexibility thanks to hydraulic bolt-on extensions which can be adjusted by 1.25 m on each side.
EFFICIENT ELECTRIC HEATING
Screed plate, tamper and pressure bars heat up twice as fast and much more evenly thanks to more efficient electric heating with an innovative monitoring system.

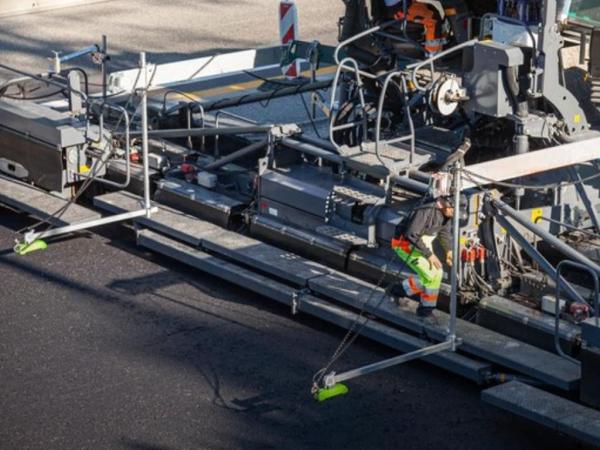

SAFE, CONVENIENT SCREED STEP
The walkway and convenient central step on the screed ensure safe and convenient access to the paver operator's platform.
EXCELLENT SURFACE ACCURACY
Its high stability guarantees excellent surface accuracy across full pave width
All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Similar models may be shown in addition to the featured model. Specifications are subject to change without prior notice.
Specifications
- Bolton Extensions - Bolt-On Extensions: 25 cm | 50 cm | 100 cm | 150 cm
- Bolton Extensions - Hydraulic Bolt-On Extensions: 125 cm
- Compacting Systems - Hydraulic Oil Pressure :
- Compacting Systems - Pressure bars (P):
- Compacting Systems - Pulse frequency:
- Compacting Systems - Screed Version: TV
- Compacting Systems - Stroke Adjustable Optional: hydraulic | 4 and 8 mm
- Compacting Systems - Stroke Adjustable Standard: mechanical | 2, 4 and 7 mm
- Compacting Systems - Tamper (T): speed up to 1,800 rpm
- Compacting Systems - Vibrators (V): eccentric vibration up to 3,000 rpm
- Crown Adjustment - Mechanical: -2% to +3%
- Pave Widths - *: Depending on paver type
- Pave Widths - Basic Width: 3.5 m
- Pave Widths - Pave Width: 3 m to 18 m*
- Screed Heating - :
- Screed Heating - Heating: screed plates, tamper bars and pressure bars heated by means of electric heating rods
- Transport Dimensions (Basic Screed) - Depth: 1.34 m
- Transport Dimensions (Basic Screed) - Weight: 2,500 kg
- Transport Dimensions (Basic Screed) - Width: 3.5 m
