Vogele AB 500
| Make | Vogele |
| Model | AB 500 |
| Type | Extending Screeds |
How can we help?
Description
The extending screed for all SUPER pavers of the 2.5 m class

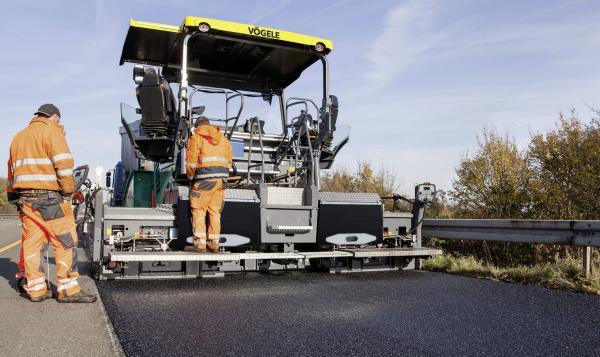

The AB 500 Extending Screed combines with all VÖGELE tractor units featuring a basic width of 2.5 m. Thanks to its unique single-tube telescoping system for infinite variation of pave width, it is ideal for a wide field of applications. The screed extends hydraulically from 2.55 m to 5 m and builds up with bolt-on extensions to a maximum width of 8.5 m. The AB 500 is available with tamper and vibrators as well as in two versions for high compaction (with tamper and 1 or 2 pressure bars) or, alternatively, in the TP2 Plus version for particularly high compaction.
Specifications
- Basic screed weight : 4,220 kg
- Basic screed weight Screed: AB 500 TP2 Plus
- Compacting systems: TV, TP1, TP2
- Compacting systems Frequency (max.): 50 Hz
- Compacting systems Speed (max.): 1,800 U/min
- Compacting systems Stroke (TV): 4 mm
- Compacting systems Vibrators (V): eccentric vibrators
- Depth (in transport position) Depth: 1.41 m
- Depth (in transport position) Screed : AB 500 TP
- Pave Basic width: 2.55 m
- Pave Bolt-on extensions: 125 cm
- Pave Extra bolt-on extensions: (TV)
- Pave Hydraulically adjustable: 2.55 m to 5.00 m
- Pave Minimum pave width: 125 cm
- Profile Settings Crown adjustment: -2.5 % to 5 %
- Profile Settings Height adjustment, extending units: -20 mm to 25 mm
- Profile Settings Version: hydraulic
- Screed Heating Heating rods: on screed plates and in tamper bars
- Screed Heating Output generation: three-phase AC generator
- Width (with side plate): 1.8 m
Features
- Electric screed heating: VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.
- Telescoping system Extending Screeds: The operating principle of all VÖGELE Extending Screeds is the single-tube telescoping system. Even at maximum extension, half of the three-part, generously-sized telescoping tube is clamped, ensuring optimum stabilization. As the guiding system is arranged at a high level, this prevents any contact with paving mix.
- Manufacturing technology Screeds: VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.
- High compaction technology: The pressure bar(s) driven by pulsed-flow hydraulics are the core of VÖGELE High Compaction Technology. By combining screed versions TP1, TP2 and TP2 Plus with this unique technology, our pavers achieve maximum compaction values. Compaction performances of over 98% can be achieved with VÖGELE’s unique high compaction technology – without rolling.
- Compaction technology: VÖGELE sets standards in compaction values during paving: cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high compaction system with tamper and pressure bars.
