Vogele Super 1803-3i

Vogele
Vogele
Vogele
Vogele
Make Vogele
Model Super 1803-3i
Type Universal Class

How can we help?


Description

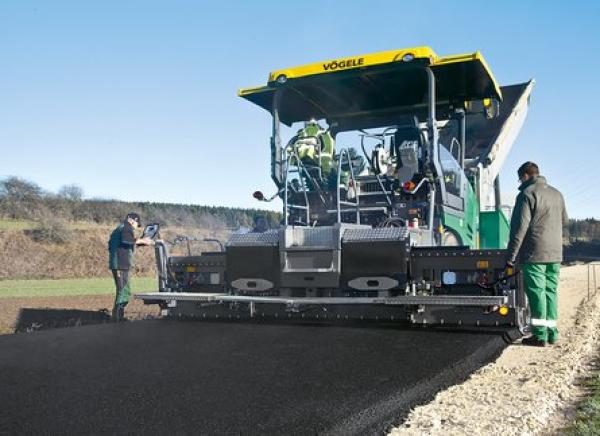

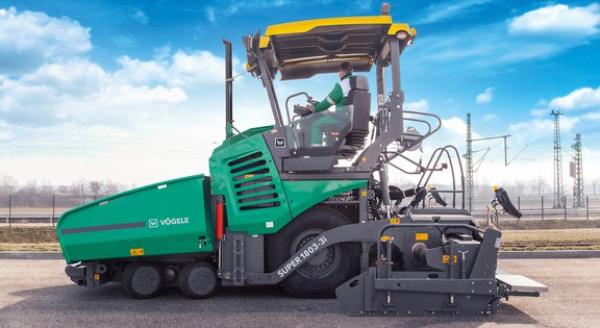

Powerful wheeled paver

The SUPER 1803-3i is VÖGELE's most powerful wheeled paver. At a high level of perfection, it combines features such as sturdy and reliable material handling, large pave widths up to 8 m, excellent mobility and easy transfer under its own power. Its statically defined undercarriage ensures constant ground contact of its powered wheels.

Specifications

  • Augers : 2
  • Augers Diameter: 400 mm
  • Augers Drive: separate hydraulic drives, proportional control
  • Augers Lubrication : centralized lubrication system, electrically-driven grease pump
  • Augers Speed: 84 U/min
  • Augers Standard height: hydraulically adjustable by 15 cm
  • Augers Version: with replaceable auger blades, auger rotation reversible
  • Conveyors : 2
  • Conveyors Drive: separate hydraulic drives, proportional control
  • Conveyors Speed: 34 m/min
  • Conveyors Version: with replaceable feeder bars, direction of conveyor temporarily reversible
  • Drive ECO mode output: 129 kW / 2000 U/min
  • Drive Emission Daily noise exposure level : 80 dB
  • Drive Emission Sound power level : 108 dB
  • Drive Engine: liquid-cooled 4-cylinder diesel engine
  • Drive Exhaust emissions after-treatment: DOC, DPF, SCR
  • Drive Exhaust emissions standard: European exhaust emissions standard 4, US standard EPA Tier 4f
  • Drive Fuel tank: 215 l
  • Drive Manufacturer : Cummins
  • Drive Nominal output: 129 kW / 1700 U/min
  • Drive Type: B6.7 - C173
  • Material Hopper Feed height (bottom of material hopper): 590 mm
  • Material Hopper Hopper capacity: 13 t
  • Material Hopper Push-Rollers Positions : can be adjusted in a forward direction by 75 mm or 150 mm
  • Material Hopper Push-Rollers Standard: oscillating
  • Material Hopper Width: 3,265 mm
  • Maximum Laydown Rate: 700 t/h
  • Operating Total Weight: 18,300 kg / 18,650 kg
  • Operating Weight Screed: AB 500 TV
  • Screed Compacting systems: TV, TP1
  • Screed Heating: electric, thermostat-controlled
  • Screed Layer thickness (up to): 30 cm
  • Screed Maximum width : 8 m
  • Screed Power Supply: Three-phase AC generator
  • Screed Type: AB 500
  • Undercarriage Auxiliary brake: hydrostatic brake
  • Undercarriage Front wheels: 4, mounted on bogies (oscillating axle)
  • Undercarriage Option: 2 rear and 2 front wheels (6x4)
  • Undercarriage Outside turning circle: 3.5 m / 6.5 m
  • Undercarriage Parking brake: spring-loaded multiple-disk brake, maintenance-free
  • Undercarriage Pave speed (up to): 18 m/min
  • Undercarriage Rear wheels: 2, pneumatic, tubeless
  • Undercarriage Service brake: generously-dimensioned multiple-disk brakes operated by foot pedal, maintenance-free
  • Undercarriage Standard: 2 rear and 2 front wheels (6x4)
  • Undercarriage Steering: hydraulic-assisted
  • Undercarriage Traction drive: separate hydraulic drives
  • Undercarriage Travel speed (up to): 20 km/h
  • Undercarriage Tyre equipment: Solid tyres
  • Undercarriage Tyre size, front wheels: 540/300–390
  • Undercarriage Tyre size, rear wheels: 14.00 R25

Features

  • VÖGELE EcoPlus: The philosophy behind the machine concept of the Premium Line road pavers is "Lower consumption – lower emissions – lower costs". The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.

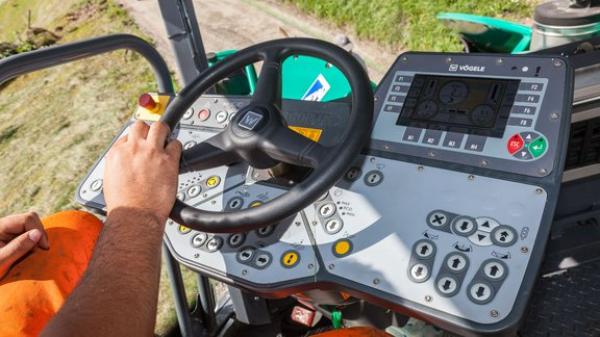

  • ErgoPlus 3: Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.
  • AutoSet Plus: With AutoSet Plus, we have enhanced the efficiency, the convenience and thus the quality of key job site processes. AutoSet Plus has two handy automatic functions. The two functions of AutoSet Plus automate routine tasks, allowing work processes to be carried out more quickly and with greater control. This in turn means that construction projects can be completed faster and more reliably.
  • PaveDock and PaveDock Assistant: A constant supply of mix is essential for producing a level, high-quality pavement. That's why VÖGELE developed the PaveDock Assistant for their “Dash 3” generation of pavers. This exceedingly efficient system greatly facilitates communication between the paver operator and the driver of the feed vehicle, and it ensures that the mix is supplied to the paver safely and without jolts. Used in combination with the PaveDock push-rollers, PaveDock Assistant contributes greatly to process safety during the transfer of the mix.
