Vogele Super 2100-3i IP
| Make | Vogele |
| Model | Super 2100-3i IP |
| Type | Special Class |
How can we help?
Description
The economical paving method for compact asphalt pavements

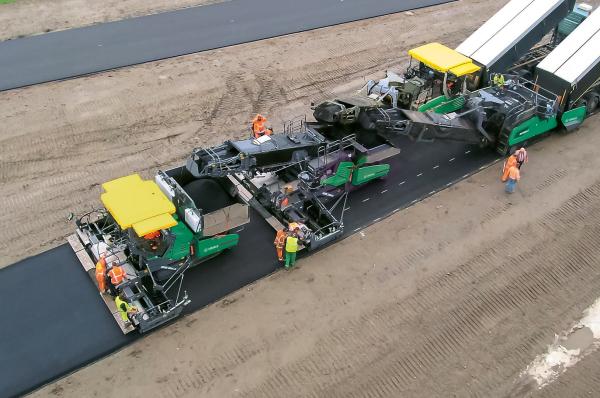

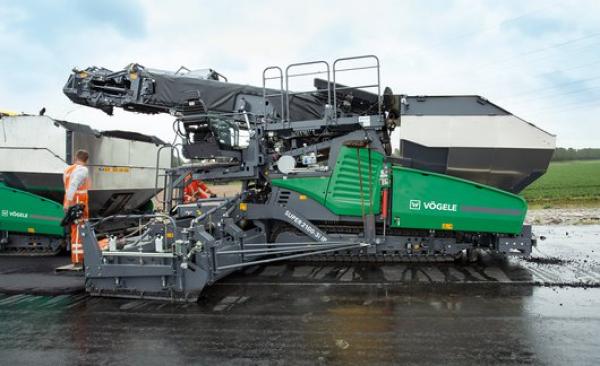

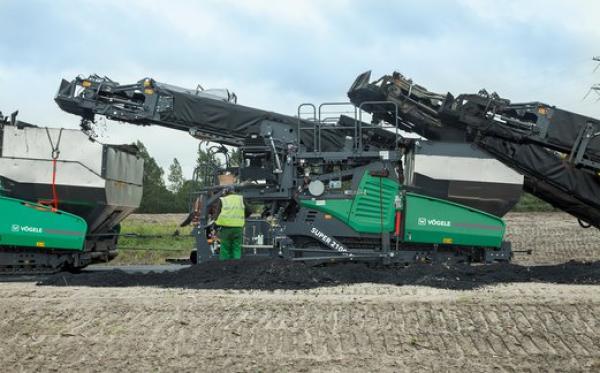

InLine Pave is the innovative process developed by VÖGELE for building compact asphalt pavements. The heart of the InLine Pave train is the SUPER 2100-3i IP for placing the binder course. It is a modified standard paver with a special transfer module for the surface course material and an AB 600 Extending Screed in the TP2 Plus version. With its special tamper, two pressure bars and extra weights, it achieves extremely high density values. Based on VÖGELE’s unique pulsed-flow hydraulics, this screed is the jewel in the crown of InLine Pave technology.
Specifications
- Augers : 2
- Augers Diameter: 480 mm
- Augers Drive: separate hydraulic drives, proportional control
- Augers Lubrication : centralized lubrication system, electrically-driven grease pump
- Augers Speed: 80 U/min
- Augers Standard height: hydraulically adjustable by 15 cm
- Augers Version: with replaceable auger blades, auger rotation reversible
- Conveyors : 2
- Conveyors Drive: separate hydraulic drives, proportional control
- Conveyors Speed: 45 m/min
- Conveyors Version: with replaceable feeder bars, direction of conveyor temporarily reversible
- Drive ECO mode output: 121 kW / 1700 U/min
- Drive Emission Daily noise exposure level : 80 dB
- Drive Emission Sound power level : 108 dB
- Drive Engine: liquid-cooled 4-cylinder diesel engine
- Drive Exhaust emissions after-treatment: DOC, SCR
- Drive Exhaust emissions standard: European exhaust emissions standard 4, US standard EPA Tier 4f
- Drive Fuel tank: 300 l
- Drive Manufacturer : Cummins
- Drive Nominal output: 125 kW / 2000 U/min
- Drive Type: QSB 6.7 - C250
- Material Hopper Feed height (bottom of material hopper): 590 mm
- Material Hopper Hopper capacity: 14 t
- Material Hopper Push-Rollers Positions : can be adjusted in a forward direction by 75 mm or 150 mm
- Material Hopper Push-Rollers Standard: oscillating
- Material Hopper Width: 3,265 mm
- Maximum Laydown Rate: 1,100 t/h
- Operating Total Weight: 29,000 kg
- Operating Weight Screed: AB 600 TP2 Plus
- Screed Compacting systems: TV, TP1, TP2, TP2 Plus
- Screed Heating: electric, thermostat-controlled
- Screed Layer thickness (up to): 30 cm
- Screed Maximum width : 8.5 m
- Screed Power Supply: Three-phase AC generator
- Screed Type: AB 500
- Undercarriage Crawler tracks: provided with rubber pads
- Undercarriage Ground contact: 3060 mm x 305 mm
- Undercarriage Lubrication of track rollers: lifetime
- Undercarriage Speeds Pave speed crawler tracks (up to): 24 m/min
- Undercarriage Speeds Travel speed (up to): 4.5 km/h
- Undercarriage Track tension adjuster: spring assembly
- Undercarriage Traction drive crawler tracks: separate hydraulic drives with electronic control
Features
- ErgoPlus 3: Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.
- VÖGELE InLine Pave: With the InLine Pave concept, VÖGELE offers a particularly innovative paving technique specially suited for “hot on hot” paving when building compact asphalt pavements. Yet conventional road construction jobs, too, can be carried out in high quality and very economically the VÖGELE InLine Pave machine technology.
- VÖGELE EcoPlus: The philosophy behind the machine concept of the Premium Line road pavers is "Lower consumption – lower emissions – lower costs". The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.
