Vogele Super 1300-3i
| Make | Vogele |
| Model | Super 1300-3i |
| Type | Compact Class |
How can we help?
Description

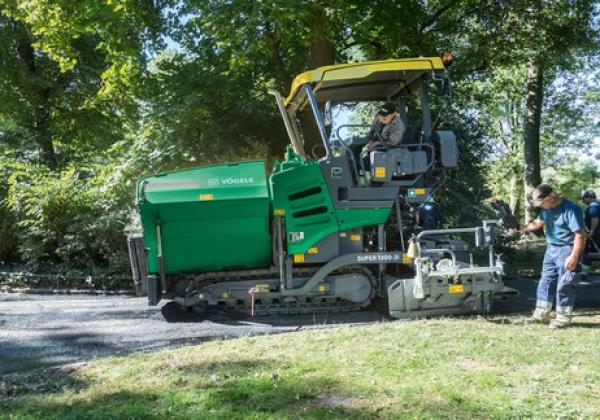

The SUPER 1300-3i is extremely compact and yet has a high laydown rate and a pave width of up to 5 m. With a range of pave widths extending from 0.75 m to 5 m, the SUPER 1300-3i copes effortlessly with combined foot and cycle paths, farm tracks and minor roads and areas.
Specifications
- Augers : 2
- Augers Diameter: 300 mm
- Augers Drive: separate hydraulic drives, proportional control
- Augers Height : infinitely variable
- Augers Speed: 85 U/min
- Augers Standard height: mechanically adjustable by 13 cm
- Augers Version: with replaceable auger blades, auger rotation reversible
- Conveyors : 2
- Conveyors Drive: separate hydraulic drives, proportional control
- Conveyors Speed: 29 m/min
- Conveyors Version: with replaceable feeder bars, direction of conveyor temporarily reversible
- Drive ECO mode output: 68.7 kW / 1600 U/min
- Drive Emission Daily noise exposure level : 80 dB
- Drive Emission Sound power level : 105 dB
- Drive Engine: liquid-cooled 4-cylinder diesel engine
- Drive Exhaust emissions after-treatment: DOC, DPF, SCR
- Drive Exhaust emissions standard: European exhaust emissions standard V, US standard EPA Tier 4f
- Drive Fuel tank: 105 l
- Drive Manufacturer : Deutz
- Drive Nominal output: 74.4 kW / 2000 U/min
- Drive Type: TCD 3,6 L4
- Material Hopper Feed height (bottom of material hopper): 580 mm
- Material Hopper Hopper capacity: 10 t
- Material Hopper Push-Rollers Positions : can be adjusted in a forward direction by 80 mm
- Material Hopper Push-Rollers Standard: oscillating, fold up with hopper sides
- Material Hopper Width: 3,350 mm
- Maximum Laydown Rate: 350 t/h
- Operating Total Weight: 10,650 kg / 10,850 kg
- Operating Weight Screed: AB 340 V / AB 340 TV

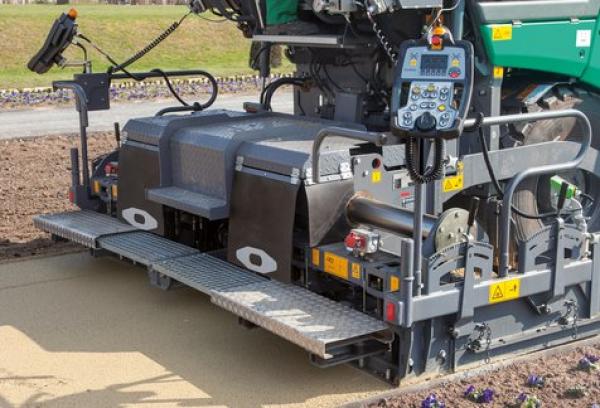

- Screed Basic width : 1.8 m
- Screed Compacting systems: V, TV
- Screed Heating: electric
- Screed Layer thickness (up to): 25 cm
- Screed Maximum width : 5 m
- Screed Power Supply: Three-phase AC generator
- Screed Type: AB 340
- Undercarriage Crawler Tracks: provided with rubber pads
- Undercarriage Ground contact: 1990 mm x 260 mm
- Undercarriage Lubrication of track rollers: lifetime
- Undercarriage Steering: hydraulic-assisted
- Undercarriage Track tension adjuster: spring assembly
- Undercarriage Traction drive: separate hydraulic drives with electronic control
Features
- AutoSet Basic: AutoSet Basic is especially helpful when the machine frequently has to be moved on the job site. Simply pressing the “Execute” button hydraulically raises the augers, the hopper front and the deflectors in front of the crawler to the uppermost positions. The screed is moved into transport position. The conveyors are temporarily reversed, preventing mix from falling to the ground when the paver travels to the next work section on site. Once the paver has been repositioned, pressing the “Execute” button again returns all systems to the previously stored working positions.

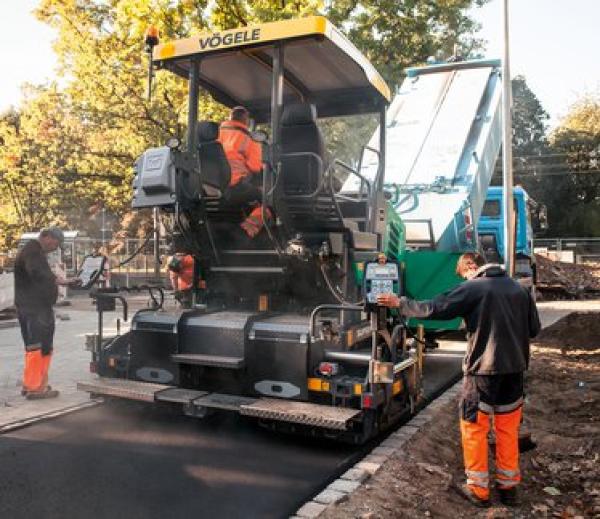

- PaveDock Assistant: A constant supply of mix is essential for producing a level, high-quality pavement. That's why VÖGELE developed the PaveDock Assistant for their “Dash 3” generation of pavers. This exceedingly efficient system greatly facilitates communication between the paver operator and the driver of the feed vehicle, and it ensures that the mix is supplied to the paver safely and without jolts.
- ErgoPlus 3: Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.
