John Deere Forks and Spears
| Make | John Deere |
| Model | Forks and Spears |
| Type | Worksite Pro Construction Attachments |
How can we help?
Description
About Our Ag & Nursery Forks
Ag fork tines easily penetrate pen-packed material for quick clean-out. Nursery forks easily transport balled and burlapped trees and container stock.

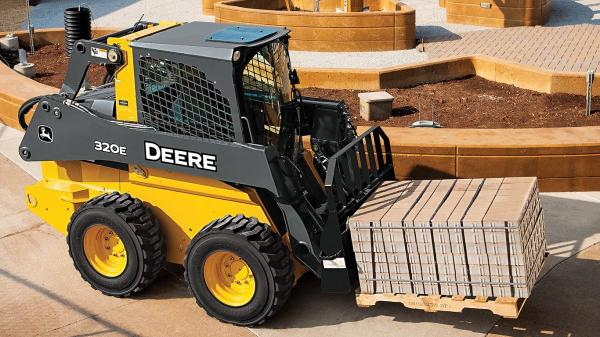

About Our Pallet Forks
Skid-resistant steps on both sides of the pallet-fork frame ease entrance and exit. Rail style holds forks in a rigid position and features a single-piece backrest and unrestricted visibility to the fork tips.

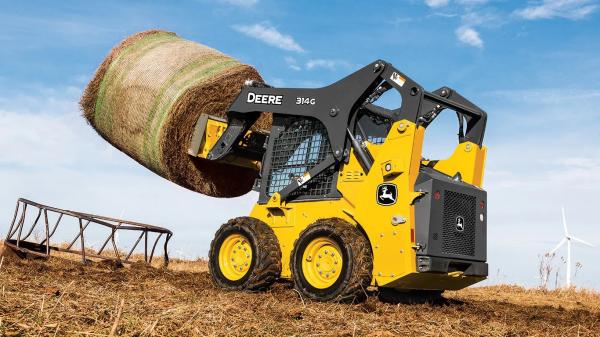

About Our Bale Spears
Offering optimal rigidity and capacity, these spears are built for a long working life. Their low-profile design provides unrestricted visibility to the bale spear and tine tips.
Models
Pallet Forks
Model | Frame Width (with steps) | Fork Thickness | Pallet Fork Rating (pair of tines) |
|---|---|---|---|
Rail | 1353 mm (53.3 in.) | 35 mm (1.4 in.) | 1700 kg (3,750 lb.) |
Heavy Duty | 1723 mm (67.8 in.) | 45 mm (1.78 in.) | 2270 kg (5,000 lb.) |
Severe Duty for CWLs | N/A | 50 mm (2 in.) | 4000 kg (8,800 lb.) |
Severe Duty PF45 | 1380 mm (54 in.) | 50 mm (2 in.) | 4000 kg (8,800 lb.) |
Severe Duty PF60 | 1730 mm (68 in.) | 50 mm (2 in.) | 4000 kg (8,800 lb.) |
Nursery Forks
| Model | Width | Maximum Root Ball | Fork Opening (Parallel) |
|---|---|---|---|
|
NF44 Nursery Fork |
1194 mm (47 in.) |
1118 mm (44 in.) |
457 mm (18 in.) |
Bale Spears
| Model | Weight | NUMBER OF MAIN TINES | TINE CAPACITY |
|---|---|---|---|
|
AB21 Bale Spears |
66 kg (145 lb.) |
1 main tine |
907 kg (2,000 lb.) |
|
AB31 Bale Spears |
91 kg (200 lb.) |
1 main tine |
1361 kg (3,000 lb.) |
|
AB32 Bale Spears |
70 kg (155 lb.) |
2 main tines |
1361 kg (3,000 lb.) |
|
AB42 Bale Spears |
109 kg (240 lb.) |
2 main tines |
1814 kg (4,000 lb.) |
|
AB43 Bale Spears |
102 kg (225 lb.) |
3 main tines |
1814 kg (4,000 lb.) |
|
Square |
171 kg (375 lb.) |
-- |
-- |
Ag Forks
| Model | Number of Tines | Weight | Width |
|---|---|---|---|
|
AF60 Ag Fork |
6 |
370 lb. (168 kg) |
59 in. (1500 mm) |
|
AF66 Ag Fork |
7 |
395 lb. (179 kg) |
65 in. (1652 mm) |
|
AF72 Ag Fork |
7 |
435 lb. (197 kg) |
71 in. (1804 mm) |
|
AF78 Ag Fork |
8 |
445 lb. (202 kg) |
77 in. (1956 mm) |
Features
- Quik-Tatch: With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.
Links
- Bale Spears Brochure
- Nursery Forks Brochure
- Pallet Forks Brochure
- Ag Forks Brochure
- Full Attachment Brochure
- Compact Construction Equipment Guide
