John Deere Cutters, Shredders, and Mulchers
| Make | John Deere |
| Model | Cutters, Shredders, and Mulchers |
| Type | Worksite Pro Construction Attachments |
How can we help?
Description
About Our Rotary Cutters
Our redesigned direct drivetrain eliminates the gearbox, for improved performance, durability and reliability. Triple bidirectional blade design of 19.1-mm (0.75 in.)-thick high-grade steel helps to stabilize. New options include highly-visible pressure gauge and under-mounted front steel wheels.

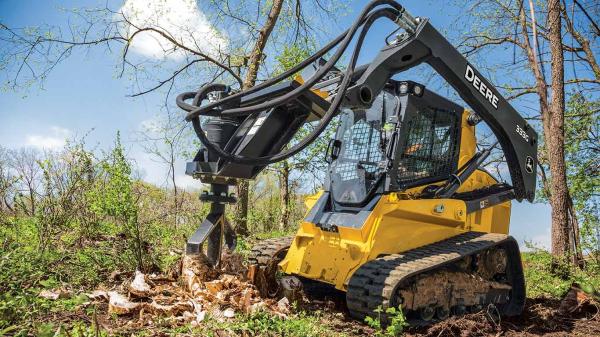

A John Deere 333G Compact Track Loader shreds a stump with a SS30 high-torque stump shredder attachment
About Our Stump Shredders
Remove stumps from 203 to 711 mm (8 to 28 in.) in diameter in a single pass and easily remove larger stumps with multiple bores. Low-speed, high-torque auger planetary drive shreds material more safely and without the dangerous flying debris of conventional stump grinders. Site cleanup is easy thanks to the small, contained chip pile.

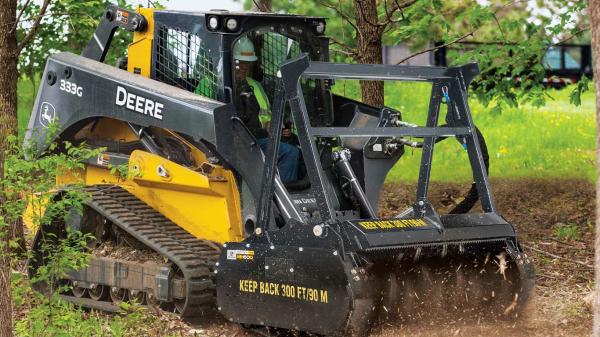

About Our Mulchers
The MH60D Mulching Head features a redesigned mulching chamber and efficiently shreds underbrush and woody materials into beneficial mulch in minutes. Internal counter-combs help shatter incoming material, creating finer mulch. Rotor is balanced for smooth operation, and oversized sealed rotor bearings deliver long-term durability.
Models
Rotary Cutters
| Model | Cutting Width | Overall Length | Weight | Cutting Capacity |
|---|---|---|---|---|
|
RC60B Rotary Cutter |
1524 mm (60 in.) |
1930 mm (76 in.) |
508 kg (1,120 lb.) |
102 mm (4 in.) |
|
RC72B Rotary Cutter |
1829 mm (72 in.) |
2235 mm (88 in.) |
581 kg (1,280 lb.) |
102 mm (4 in.) |
|
RS72 Extreme Duty Rotary Cutter |
1830 mm (72 in.) |
2175 mm (85.6 in.) |
910 kg (2,010 lb.) |
254 mm (10 in.) |
|
RX72 Rotary Cutter |
1830 mm (72 in.) |
2175 mm (85.6 in.) |
810 kg (1,780 lb.) |
254 mm (10 in.) |
|
RC78B Rotary Cutter |
1981 mm (78 in.) |
2388 mm (94 in.) |
617 kg (1,360 lb.) |
102 mm (4 in.) |
|
RX84 Rotary Cutter |
2135 mm (84 in.) |
2475 mm (97.5 in.) |
1025 kg (2,260 lb.) |
254 mm (10 in.) |
Stump Shredders
| MODEL | WIDTH | LENGTH | WEIGHT | HYDRAULIC FLOW |
|---|---|---|---|---|
|
SS30 High-Torque Stump Shredder |
1,160 mm (46 in.) |
1,670 mm (66 in.) |
590 kg (1,300 lb.) |
76–170 L/min. (20–45 gpm) |
Mulching Heads
| Model | Cutting Width | Overall Width | Weight | Flow |
|---|---|---|---|---|
|
MH60D Mulching Head |
1520 mm (60 in.) |
1880 mm (74 in.) |
1240 kg (2,730 lb.) |
High |
Mulching Heads
| Model | Cutting Width | Overall Width | Weight | Flow |
|---|---|---|---|---|
|
MH60D Mulching Head |
1520 mm (60 in.) |
1880 mm (74 in.) |
1240 kg (2,730 lb.) |
High |
Features
- Quik-Tatch: With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.
Links
- Rotary Cutters Brochure
- Extreme Duty Rotary Cutter Brochure
- Full Attachment Brochure
- Compact Construction Equipment Guide
- Mulching Heads Brochure
- High Torque Stump Shredder Brochure
