MS 12 Z
MS 12 Z
MS 12 Z
MS 12 Z

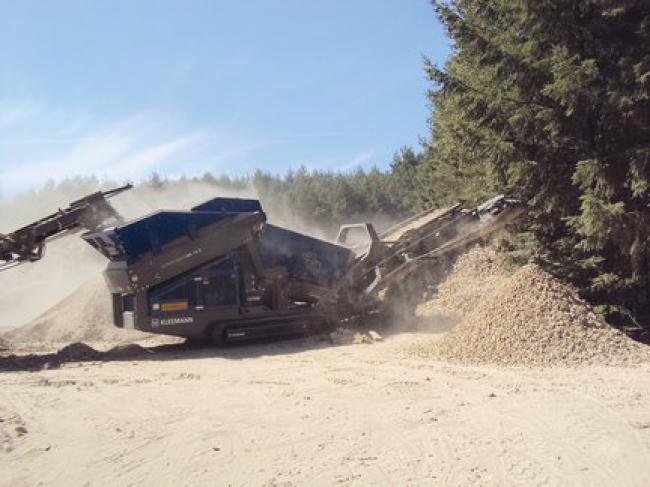

The smallest of mobile double-deck screening plants with an output of up to 200 t/h. For feed material with an edge length of up to 300 mm. The plant can be used both in natural stone, as well as recycling.

  • Mobile double-deck screening unit
  • Diesel-hydraulic drive
  • Scalping screen plant
  • Maximum feed size 300 mm

Features

  • Screen Surfaces: During the daily routine, screen surfaces are really put to the test. To guarantee long-term, reliable screening to the desired final grain size, the screen surfaces from KLEEMANN are made of particularly wear-resistant spring wire steel or round wire. Thanks to the double-anchoring at the crossings, they have a high mesh stability for uniform screening. The screening result itself is determined by numerous factors. The most important influence factors include the grain shape, the humidity content and the feed volume.

  • Scalping Screens: The MOBISCREEN scalping screens are used, for example, before the crushing process for material sorting. Coarse screen surfaces such as slotted grates, finger screens and punched plates are used. Different plant versions are available with double-deck screening units. Scalping screens are designed such that they can sort material even before the first crushing stage. For this purpose, different screening plant versions are available with different screen casing sizes as double-deck screening plants. Depending on the plant, feed material can have a feed size of up to 500 mm. Thanks to their compact dimensions, the plants are easy to relocate and transport.

Specifications

Discharge Conveyor Overflow Upper Deck (Oversize Grain) Discharge height approx.:
3,380 mm
Discharge Conveyor Overflow Upper Deck (Oversize Grain) Width approx.:
1,050 mm
Discharge Conveyor Passage Lower Deck (Fine Grain) Discharge height approx.:
3,560 mm
Discharge Conveyor Passage Lower Deck (Fine Grain) Width approx.:
650 mm
Feed capacity up to approx.:
200 t/h
Feed Hopper Volume:
4 m³
Feed size:
480 mm x 300 mm
Feeding height:
2,840 mm
Power Supply Unit Drive concept:
Diesel-hydraulic
Power Supply Unit Output Tier 3 / Stage IIIA (1500 rpm):
75 kW
Screening Unit Model:
Heavy-duty screen
Transport height approx. (default value):
3,200 mm
Transport length approx.:
9,680 mm
Transport width max.:
2,480 mm
  • Features

    Features

    • Screen Surfaces: During the daily routine, screen surfaces are really put to the test. To guarantee long-term, reliable screening to the desired final grain size, the screen surfaces from KLEEMANN are made of particularly wear-resistant spring wire steel or round wire. Thanks to the double-anchoring at the crossings, they have a high mesh stability for uniform screening. The screening result itself is determined by numerous factors. The most important influence factors include the grain shape, the humidity content and the feed volume.

    • Scalping Screens: The MOBISCREEN scalping screens are used, for example, before the crushing process for material sorting. Coarse screen surfaces such as slotted grates, finger screens and punched plates are used. Different plant versions are available with double-deck screening units. Scalping screens are designed such that they can sort material even before the first crushing stage. For this purpose, different screening plant versions are available with different screen casing sizes as double-deck screening plants. Depending on the plant, feed material can have a feed size of up to 500 mm. Thanks to their compact dimensions, the plants are easy to relocate and transport.

  • Specifications

    Specifications

    Discharge Conveyor Overflow Upper Deck (Oversize Grain) Discharge height approx.:
    3,380 mm
    Discharge Conveyor Overflow Upper Deck (Oversize Grain) Width approx.:
    1,050 mm
    Discharge Conveyor Passage Lower Deck (Fine Grain) Discharge height approx.:
    3,560 mm
    Discharge Conveyor Passage Lower Deck (Fine Grain) Width approx.:
    650 mm
    Feed capacity up to approx.:
    200 t/h
    Feed Hopper Volume:
    4 m³
    Feed size:
    480 mm x 300 mm
    Feeding height:
    2,840 mm
    Power Supply Unit Drive concept:
    Diesel-hydraulic
    Power Supply Unit Output Tier 3 / Stage IIIA (1500 rpm):
    75 kW
    Screening Unit Model:
    Heavy-duty screen
    Transport height approx. (default value):
    3,200 mm
    Transport length approx.:
    9,680 mm
    Transport width max.:
    2,480 mm
