MC 110 Z EVO
MC 110 Z EVO
MC 110 Z EVO
MC 110 Z EVO
MC 110 Z EVO
MC 110 Z EVO
MC 110 Z EVO
MC 110 Z EVO
MC 110 Z EVO
MC 110 Z EVO

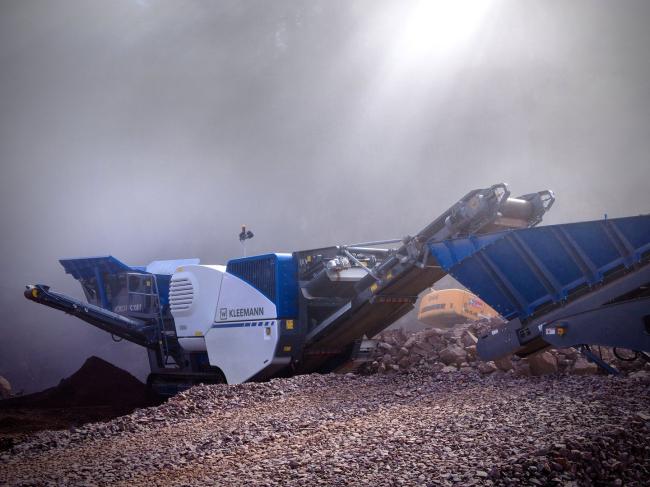

The MOBICAT MC 110 Z EVO features an independent double-decker prescreen that efficiently removes fine pieces in the feed material. Whether used individually or linked with an MCO 9 EVO cone crusher or MOBISCREEN MS EVO screening plant, this machine is sure to impress.

  • Continuous Feed System (CFS) for optimum crusher loading
  • Innovative crusher unblocking system for extremely short downtimes
  • Independently vibrating double‐deck prescreen
  • Efficient and powerful diesel direct drive

Features

  • Effective prescreening - better results and less wear: For effective prescreening of the feed material, the crushing plants are equipped with an independently vibrating double-deck prescreen. Wear in the crushing chamber is thus reduced by diverting the medium grain directly onto the vibrating extractor. The screen surfaces in the upper and lower deck can be changed easily and safely.

  • Continuous Feed System (CFS): Uniform loading is indispensable for a good product, optimum throughput and low wear. To ensure that the crushing chamber is always evenly filled, the Continuous Feed System (CFS) monitors the crusher level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilisation (impact crusher). Independently of this, the CFS regulates the frequency of the vibrating feeder and prescreen. A backlog on the prescreen is thus avoided and crusher utilisation is optimised. When the crushing chamber is free again after overloading, material transport is continued without a delay. The CFS facilitates the work of the operator because the machine automatically guarantees a homogeneous material flow, thus ensuring optimum loading of the crusher.

  • Jaw crusher: Jaw crushers operate according to the principle of pressure crushing. The crushed material is crushed in the wedge-shaped pit between the fixed crusher jaw and the crusher jaw articulated on an eccentric shaft. The material is crushed by the elliptic course of movement and falls down due to gravity. This occurs until the material is smaller than the set crushing gap.

  • Innovative diesel-direct electric drive concept - impressive performance with the best possible consumption values: The crushers of the EVO line have an innovative "diesel-direct electric" drive concept and are powerful and economical at the same time. An efficient and powerful diesel engine drives the crusher directly via a fluid coupling. The drive technology thus impresses with extremely low efficiency losses and maximum output directly at the crusher.All secondary drives – for example, for prescreen, vibrating chutes and conveyor belts – are driven electrically. The fluid coupling guarantees high operational safety – for operator and machine.

Specifications

Crusher Discharge Conveyor discharge conveyor width:
1,000 mm
Crusher Discharge Conveyor discharge conveyor width, extended:
1,000 mm
Crusher Discharge Conveyor Discharge height approx.:
3,270 mm
Crusher Discharge Conveyor Discharge height, extended approx.:
3,880 mm
Crusher Discharge Conveyor length:
9,200 mm
Crusher Discharge Conveyor length, extended:
10,700 mm
Crusher drive type:
Direct
Crusher Gap setting:
Hydraulically adjustable
Crusher Gap width max.:
180 mm
Crusher Gap width min.:
30 mm
Crusher inlet (W x D):
1100 mm x 700 mm
Crusher Single toggle jaw crusher model:
STR110-070
Crusher weight (approx.):
17,000 kg
Crushing power:
160 kW
Feed Unit capacity up to approx.:
300 t/h
Feed Unit height with extension:
4,160 mm
Feeding Unit Feed Size :
990 mm x 990 mm
Feeding Unit height:
3,600 mm
Feeding Unit Hopper length:
3,200 mm
Feeding Unit Hopper length with extension:
3,600 mm
Feeding Unit Hopper volume:
3.66 m³
Feeding Unit Hopper volume with extension:
8.4 m³
Feeding Unit Hopper width:
1,900 mm
Feeding Unit Hopper width with extension:
3,200 mm
Power Supply Unit Drive concept:
Diesel-electric direct drive
Power Supply Unit Generator (1500 rpm):
135 kVA
Power Supply Unit Output LRC (1500 rpm):
248 kW
Power Supply Unit Output Tier 3 / Stage IIIA (1500 rpm):
248 kW
Primary Screening Length:
1,830 mm
Primary Screening Model:
Triple-deck heavy-piece screen
Primary Screening Width:
1,000 mm
Side Charger Conveyor Discharge height:
2,190 mm
Side Charger Conveyor Discharge height, extended:
3,080 mm
Side Charger Conveyor Length:
2,700 mm
Side Charger Conveyor Length, extended:
5,000 mm
Side Charger Conveyor Width:
500 mm
Transport length approx.:
14,970 mm
Transport width max.:
3,000 mm
Vibrating Feeder Length:
3,680 mm
Vibrating Feeder Width:
900 mm
