MC 100 R EVO
MC 100 R EVO
MC 100 R EVO
MC 100 R EVO
MC 100 R EVO
MC 100 R EVO
MC 100 R EVO
MC 100 R EVO
MC 100 R EVO
MC 100 R EVO

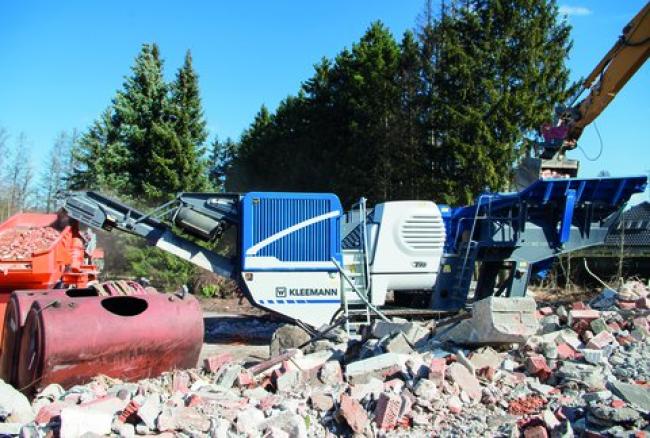

The smallest mobile jaw crusher of the EVO line impresses with its compactness and reliability. Can be used for the most varied of applications, it offers wide-ranging possibilities for both demolition companies and contract crushing companies. Thanks to the diesel-direct drive, the MC 100 R EVO is economical in consumption.

  • Continuous Feed System (CFS) for optimum crusher loading
  • Innovative crusher unblocking system for extremely short downtimes
  • Efficient and powerful diesel direct drive
  • Simple control with menu-guided touch panel

Features

  • Innovative diesel-direct electric drive concept - impressive performance with the best possible consumption values: The crushers of the EVO line have an innovative "diesel-direct electric" drive concept and are powerful and economical at the same time. An efficient and powerful diesel engine drives the crusher directly via a fluid coupling. The drive technology thus impresses with extremely low efficiency losses and maximum output directly at the crusher. All secondary drives – for example, for prescreen, vibrating chutes and conveyor belts – are driven electrically. The fluid coupling guarantees high operational safety – for operator and machine.

  • Jaw crusher: Jaw crushers operate according to the principle of pressure crushing. The crushed material is crushed in the wedge-shaped pit between the fixed crusher jaw and the crusher jaw articulated on an eccentric shaft. The material is crushed by the elliptic course of movement and falls down due to gravity. This occurs until the material is smaller than the set crushing gap.

  • Continuous Feed System (CFS): Uniform loading is indispensible for a good product, optimum throughput and low wear. To ensure that the long crushing chamber is always evenly, the Continuous Feed System (CFS) monitors the crush level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilisation (impact crusher).

  • Effective prescreening - better results and less wear: For effective prescreening of the feed material, the crushing plants are equipped with an independently vibrating double-deck prescreen. Wear in the crushing chamber is thus reduced by diverting the medium grain directly onto the vibrating extractor. The screen surfaces in the upper and lower deck can be changed easily and safely.

Specifications

Crusher Discharge Conveyor Discharge height approx.:
3,050 mm
Crusher discharge conveyor length:
8,600 mm
Crusher discharge conveyor length, extended:
10,100 mm
Crusher discharge conveyor width:
1,000 mm
Crusher discharge conveyor width, extended:
1,000 mm
Crusher Discharge height, extended approx.:
3,660 mm
Crusher drive type:
Direct
Crusher Gap setting:
Hydraulically adjustable
Crusher Gap width max.:
130 mm
Crusher Gap width min.:
20 mm
Crusher inlet (W x D):
950 mm x 550 mm
Crusher Single toggle jaw crusher model:
STR95-055
Crusher weight (approx.):
12,000 kg
Crushing power:
160 kW
Feed capacity up to approx.:
220 t/h
Feed height with extension:
3,720 mm
Feed size:
855 mm x 855 mm
Feeding height:
3,200 mm
Hopper length:
3,000 mm
Hopper length with extension:
2,800 mm
Hopper volume:
3.2 m³
Hopper volume with extension:
7.1 m³
Hopper width:
1,900 mm
Hopper width with extension:
3,100 mm
Power Supply Unit Drive concept:
Diesel-electric direct drive
Power Supply Unit Generator (1500 rpm):
85 kVA
Power Supply Unit Output Tier 3 / Stage IIIA (1500 rpm):
165 kW
Side Discharge Conveyor Discharge Height:
2,110 mm
Side Discharge Conveyor Discharge Height, extended:
3,000 mm
Side Discharge Conveyor Length:
2,700 mm
Side Discharge Conveyor Length, extended:
5,000 mm
Side Discharge Conveyor Width :
500 mm
Transport length approx.:
12,965 mm
Transport width max.:
3,000 mm
Vibrating Feeder Length :
3,940 mm
Vibrating Feeder Width:
870 mm
  • Features

    Features

    • Innovative diesel-direct electric drive concept - impressive performance with the best possible consumption values: The crushers of the EVO line have an innovative "diesel-direct electric" drive concept and are powerful and economical at the same time. An efficient and powerful diesel engine drives the crusher directly via a fluid coupling. The drive technology thus impresses with extremely low efficiency losses and maximum output directly at the crusher. All secondary drives – for example, for prescreen, vibrating chutes and conveyor belts – are driven electrically. The fluid coupling guarantees high operational safety – for operator and machine.

    • Jaw crusher: Jaw crushers operate according to the principle of pressure crushing. The crushed material is crushed in the wedge-shaped pit between the fixed crusher jaw and the crusher jaw articulated on an eccentric shaft. The material is crushed by the elliptic course of movement and falls down due to gravity. This occurs until the material is smaller than the set crushing gap.

    • Continuous Feed System (CFS): Uniform loading is indispensible for a good product, optimum throughput and low wear. To ensure that the long crushing chamber is always evenly, the Continuous Feed System (CFS) monitors the crush level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilisation (impact crusher).

    • Effective prescreening - better results and less wear: For effective prescreening of the feed material, the crushing plants are equipped with an independently vibrating double-deck prescreen. Wear in the crushing chamber is thus reduced by diverting the medium grain directly onto the vibrating extractor. The screen surfaces in the upper and lower deck can be changed easily and safely.

  • Specifications

    Specifications

    Crusher Discharge Conveyor Discharge height approx.:
    3,050 mm
    Crusher discharge conveyor length:
    8,600 mm
    Crusher discharge conveyor length, extended:
    10,100 mm
    Crusher discharge conveyor width:
    1,000 mm
    Crusher discharge conveyor width, extended:
    1,000 mm
    Crusher Discharge height, extended approx.:
    3,660 mm
    Crusher drive type:
    Direct
    Crusher Gap setting:
    Hydraulically adjustable
    Crusher Gap width max.:
    130 mm
    Crusher Gap width min.:
    20 mm
    Crusher inlet (W x D):
    950 mm x 550 mm
    Crusher Single toggle jaw crusher model:
    STR95-055
    Crusher weight (approx.):
    12,000 kg
    Crushing power:
    160 kW
    Feed capacity up to approx.:
    220 t/h
    Feed height with extension:
    3,720 mm
    Feed size:
    855 mm x 855 mm
    Feeding height:
    3,200 mm
    Hopper length:
    3,000 mm
    Hopper length with extension:
    2,800 mm
    Hopper volume:
    3.2 m³
    Hopper volume with extension:
    7.1 m³
    Hopper width:
    1,900 mm
    Hopper width with extension:
    3,100 mm
    Power Supply Unit Drive concept:
    Diesel-electric direct drive
    Power Supply Unit Generator (1500 rpm):
    85 kVA
    Power Supply Unit Output Tier 3 / Stage IIIA (1500 rpm):
    165 kW
    Side Discharge Conveyor Discharge Height:
    2,110 mm
    Side Discharge Conveyor Discharge Height, extended:
    3,000 mm
    Side Discharge Conveyor Length:
    2,700 mm
    Side Discharge Conveyor Length, extended:
    5,000 mm
    Side Discharge Conveyor Width :
    500 mm
    Transport length approx.:
    12,965 mm
    Transport width max.:
    3,000 mm
    Vibrating Feeder Length :
    3,940 mm
    Vibrating Feeder Width:
    870 mm
