MCO 13

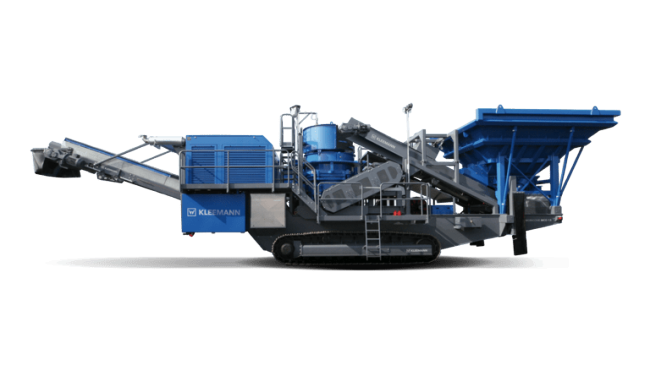

The mobile cone crusher MOBICONE MCO 13 has been designed the same as the MOBICONE MCO 11, however, the larger diameter of its cone crusher of 1300 mm means its output is higher. Its robust design makes it particularly suitable for use in hard, abrasive natural stone.

  • Cone crusher with bearings and automatic circulation lubrication for high output and long service life
  • Available as secondary or tertiary crusher
  • Diesel-electric drive concept
  • Linkage option with other KLEEMANN plants (option)

Features

  • Cone Crusher: Cone crushers crush the feed material in a circulating opening and closing crushing gap between bowl liner and crusher cone. Opening and closing also takes place simultaneously on the opposites sides of the crushing chamber.

  • Innovative diesel-direct electric drive concept - impressive performance with the best possible consumption values: The crushers of the EVO line have an innovative "diesel-direct electric" drive concept and are powerful and economical at the same time. An efficient and powerful diesel engine drives the crusher directly via a fluid coupling. The drive technology thus impresses with extremely low efficiency losses and maximum output directly at the crusher. All secondary drives – for example, for prescreen, vibrating chutes and conveyor belts – are driven electrically. The fluid coupling guarantees high operational safety – for operator and machine.

Specifications

Crusher discharge conveyor length:
10,400 mm
Crusher discharge conveyor width:
1,200 mm
Crusher Discharge height approx.:
3,970 mm
Crusher drive type:
Electric
Crusher system size:
1,320 mm
Crusher weight (approx.):
23,490 kg
Feed capacity up to approx.:
590 t/h
Feed conveyor (W x L):
1200 mm x 7000 mm
Feed conveyor Length:
7,000 mm
Feed conveyor Width:
1,200 mm
Feed height with extension:
4,900 mm
Feed Hopper length:
3,900 mm
Feed Hopper length with extension:
5,350 mm
Feed Hopper volume:
10 m³
Feed Hopper volume with extension:
20 m³
Feed Hopper width:
3,400 mm
Feed Hopper width with extension:
4,800 mm
Feed size:
330 mm
Feeding height:
4,180 mm
Vibrating Feeder Length:
2,850 mm
Vibrating Feeder Width:
1,195 mm
  • Features

    Features

    • Cone Crusher: Cone crushers crush the feed material in a circulating opening and closing crushing gap between bowl liner and crusher cone. Opening and closing also takes place simultaneously on the opposites sides of the crushing chamber.

    • Innovative diesel-direct electric drive concept - impressive performance with the best possible consumption values: The crushers of the EVO line have an innovative "diesel-direct electric" drive concept and are powerful and economical at the same time. An efficient and powerful diesel engine drives the crusher directly via a fluid coupling. The drive technology thus impresses with extremely low efficiency losses and maximum output directly at the crusher. All secondary drives – for example, for prescreen, vibrating chutes and conveyor belts – are driven electrically. The fluid coupling guarantees high operational safety – for operator and machine.

  • Specifications

    Specifications

    Crusher discharge conveyor length:
    10,400 mm
    Crusher discharge conveyor width:
    1,200 mm
    Crusher Discharge height approx.:
    3,970 mm
    Crusher drive type:
    Electric
    Crusher system size:
    1,320 mm
    Crusher weight (approx.):
    23,490 kg
    Feed capacity up to approx.:
    590 t/h
    Feed conveyor (W x L):
    1200 mm x 7000 mm
    Feed conveyor Length:
    7,000 mm
    Feed conveyor Width:
    1,200 mm
    Feed height with extension:
    4,900 mm
    Feed Hopper length:
    3,900 mm
    Feed Hopper length with extension:
    5,350 mm
    Feed Hopper volume:
    10 m³
    Feed Hopper volume with extension:
    20 m³
    Feed Hopper width:
    3,400 mm
    Feed Hopper width with extension:
    4,800 mm
    Feed size:
    330 mm
    Feeding height:
    4,180 mm
    Vibrating Feeder Length:
    2,850 mm
    Vibrating Feeder Width:
    1,195 mm
