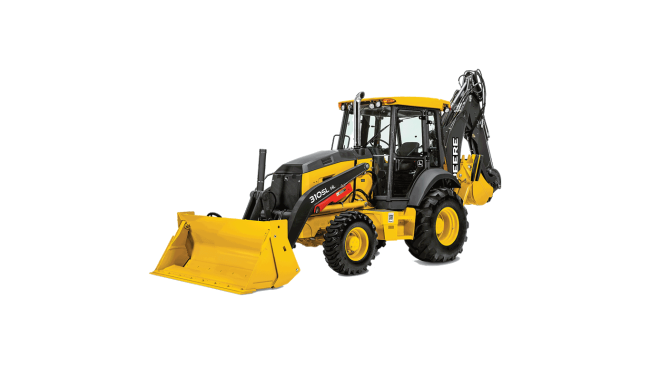

310SL HL Backhoe
  • Net Peak Power: 82 kW (110 hp) at 2,240 rpm
  • Max Standard Dipperstick Digging Depth: 4.59 m (15 ft. 1 in.)
  • Operating Weight: 7,516 kg (16,571 lb.)

Features

  • Standard Dipperstick Dig Depth: 4.59 m (15 ft. 1 in.)

  • Net Peak Power: 82 kW (110 hp) at 2,240 rpm

  • Operating Weight: 7,516 kg (16,571 lb.)

Specifications

CAPACITIES - 4WD Front Axle, ltr (gallons (US)):
6.5 (1.725)
CAPACITIES - Battery Voltage, V:
12
CAPACITIES - Boom Lift - Maximum Reach - Non-Extending Dipper, kg (lbs):
2176 (4796)
CAPACITIES - Bucket Breakout - General Purpose, kN (lbf):
49.4 (11116)
CAPACITIES - Bucket Capacity - Standard General Purpose, m³ (yd³):
0.86 (1.12)
CAPACITIES - Bucket Tearout - Non-Extending Dipper, kN (lbf):
69.9 (15723)
CAPACITIES - Fuel Tank, ltr (gallons (US)):
128.7 (34)
CAPACITIES - Hydraulic Tank, ltr (gallons (US)):
45 (11.9)
CAPACITIES - Lift To Full Height - General Purpose Bucket, kg (lbs):
3425 (7552)
CAPACITIES - Pump:
Axial Piston Pump
CAPACITIES - Pump Flow, lt/min (gallons (US) / min):
159 (42)
CAPACITIES - Rear Axle, ltr (gallons (US)):
18 (4.75)
CAPACITIES - Stick tearout, kN (lbf):
38.2 (8581)
DIMENSIONS - Bucket Pin Height - General Purpose, mm (ft/in):
3430 (11 ft 3 in)
DIMENSIONS - Bucket Rotation - Position 1, Degrees:
190
DIMENSIONS - Digging Depth - General Purpose, mm (inches):
124 (4.9)
DIMENSIONS - Dump Height - General Purpose, mm (ft/in):
2730 (8 ft 11 in)
DIMENSIONS - Dump Reach - General Purpose, mm (inches):
744 (29.3)
DIMENSIONS - Ground Clearance, mm (inches):
310 (12)
DIMENSIONS - Height over ext Stick, mm (ft/in):
3560 (11 ft 10 in)
DIMENSIONS - Height over std Stick, mm (ft/in):
3560 (11 ft 10 in)
DIMENSIONS - Max length with ext. Stick, mm (ft/in):
7370 (24 ft 2 in)
DIMENSIONS - Maximum Width, mm (ft/in):
2180 (7 ft 2 in)
DIMENSIONS - Wheelbase - 4WD, mm (ft/in):
2190 (7 ft 2 in)
DIMENSIONS - Width - General Purpose Bucket, mm (ft/in):
2184 (7 ft 2 in)
DIMENSIONS - Width over tires, mm (ft/in):
2340 (7 ft 8 in)
DRIVELINE - Displacement, ltr (Inches³):
4.5 (276)
DRIVELINE - Engine Manufacturer :
John Deere
DRIVELINE - Engine Model:
PowerTech Plus 4045HT096
DRIVELINE - Engine Output - Net, kW (hp):
82 (110)
DRIVELINE - Rated Speed, rpm:
2240
DRIVELINE - Service Brake Actuation:
Hydraulic w/Power Assist
DRIVELINE - Service Brake Type:
Wet Multi Disc
DRIVELINE - Transmission Type:
Powershift
WEIGHTS - Operating Weight, kg (lbs):
7626 (16813)
WEIGHTS - Weight - 4WD, GP, std Stick, kg (lbs):
7626 (16813)

PowerShift™ Transmission

Standard John Deere PowerShift™ Transmission provides smooth, on-the-fly, clutch-free gear shifts.

Craning Capacity

An additional 10–15 percent increase in craning capacity is activated through Lift Mode at the push of a button on the convenient sealed switch module.

Mechanical-Front-Wheel-Drive

True four-wheel drive on command. Standard limited-slip mechanical-front-wheel drive delivers superior traction in any ground condition. Engage momentary mechanical-front-wheel drive “on the fly” with the touch of a button on the new loader control.

Engine

John Deere Power Systems 4.5L engines are designed with replaceable cylinder liners for superior cooling, reduced oil breakdown, and reduced ring wear. This means cooler engine components and longer life as compared to cast-in-block designs.

Ride Control

Ride control, front loader hydraulic cylinders act as a shock absorber, smoothing travel over rough terrain.

Easy Maintenance

Same-side, ground-level service points help speed daily checks and fills. Other common-sense features such as quick-change filters, extended service intervals, simple-to-read sight gauges, and easy-access grease zerks help increase uptime and lower daily operating costs.

Cab and Controls

L-Series pilot towers provide more legroom and additional space for transitioning between loader and backhoe operation. Palm-on-top loader-control grip makes operation even easier with integrated electric clutch disconnect and momentary MFWD.

Security

Machine-security system with touchpad passcode helps prevent unauthorized operation.
