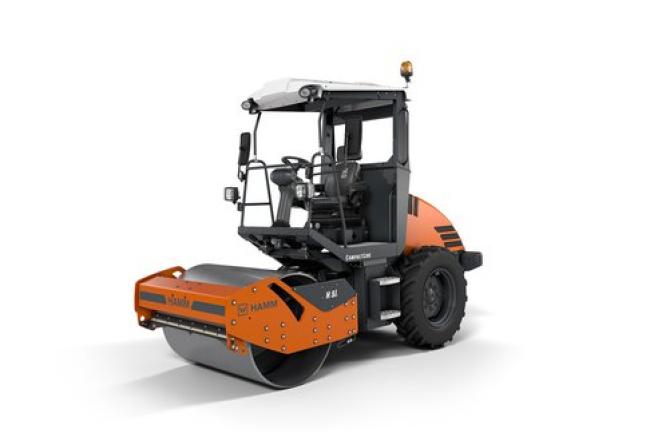

H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO
H 7i VIO

Highlights

  • 3-point articulation for outstanding traction and off-road mobility
  • Simple, intuitive and language-neutral operation
  • High climbing ability
  • Compact dimensions
  • Compaction system VIO – vibration or oscillation

Features

  • Oscillation: In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forwards-backwards rotational movement. This results in the compaction energy being transmitted forwards and backwards tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher quality, leading to faster, more significant compaction increases. The scope of application is enormous. In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forwards-backwards rotational movement. This results in the compaction energy being transmitted forwards and backwards tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher quality, leading to faster, more significant compaction increases. The scope of application is enormous.

  • HAMM Compaction Quality (HCQ): HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. An panel PC (touchscreen) on the driver's platform then visualises the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time. HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. An panel PC (touchscreen) on the driver's platform then visualises the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.

  • 3-point articulation: 3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort. 3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Specifications

Acoustic power LW(A), sticker:
104
Amplitude, vibration:
1.38 mm
Axle load, front:
3,765 kg
Axle load, rear:
2,560 kg
Climbing ability, with vibration:
55
Climbing ability, without vibration:
60 %
Description:
Compactor with VIO-drum
Drum diameter, front:
1,206 mm
Drum thickness, front:
20 mm
Drum width, front:
1,680 mm
Exhaust emissions category:
EU Stage V / EPA Tier 4
Exhaust gas after-treatment:
DOC-DPF
French classific., data/class:
25,2/VM2
Fuel tank, capacity:
123 l
Ground clearance, centre:
317 mm
Name:
H 7i VIO
Number of cylinders:
4
Operating weight with cab:
6,325 kg
Operating weight with ROPS:
6,105 kg
Operating weight, max.:
6,830 kg
Oscillation angle +/-:
10 °
Oscillation force:
123 kN
Oscillation frequency:
36 Hz
Power ISO 14396, HP:
75.3 HP
Power SAE J1349, HP:
74.2 hp
Power SAE J1349, kW:
55.4 kW
Power SAE J1349, rpm:
2,200 rpm
Series:
H270
Series:
H CompactLine
Size of tyres, rear:
AW 14.9-24 8 TL
Slope angle, front:
38 °
Slope angle, rear:
42 °
Speed, transportation gear:
0-12,5
Speed, working gear, I:
0-6,0
Static linear load, front:
22.4 kg/cm
Tangential amplitude, oscillation:
1.37 mm
Total height with cab:
2,925 mm
Total length:
4,409 mm
Total width with cab:
1,844 mm
Turning radius, inside:
3,310 mm
Version:
V3307-CR-T
Wheel base:
2,306 mm

Links

  • Features

    Features

    • Oscillation: In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forwards-backwards rotational movement. This results in the compaction energy being transmitted forwards and backwards tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher quality, leading to faster, more significant compaction increases. The scope of application is enormous. In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forwards-backwards rotational movement. This results in the compaction energy being transmitted forwards and backwards tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher quality, leading to faster, more significant compaction increases. The scope of application is enormous.

    • HAMM Compaction Quality (HCQ): HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. An panel PC (touchscreen) on the driver's platform then visualises the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time. HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. An panel PC (touchscreen) on the driver's platform then visualises the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.

    • 3-point articulation: 3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort. 3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

  • Specifications

    Specifications

    Acoustic power LW(A), sticker:
    104
    Amplitude, vibration:
    1.38 mm
    Axle load, front:
    3,765 kg
    Axle load, rear:
    2,560 kg
    Climbing ability, with vibration:
    55
    Climbing ability, without vibration:
    60 %
    Description:
    Compactor with VIO-drum
    Drum diameter, front:
    1,206 mm
    Drum thickness, front:
    20 mm
    Drum width, front:
    1,680 mm
    Exhaust emissions category:
    EU Stage V / EPA Tier 4
    Exhaust gas after-treatment:
    DOC-DPF
    French classific., data/class:
    25,2/VM2
    Fuel tank, capacity:
    123 l
    Ground clearance, centre:
    317 mm
    Name:
    H 7i VIO
    Number of cylinders:
    4
    Operating weight with cab:
    6,325 kg
    Operating weight with ROPS:
    6,105 kg
    Operating weight, max.:
    6,830 kg
    Oscillation angle +/-:
    10 °
    Oscillation force:
    123 kN
    Oscillation frequency:
    36 Hz
    Power ISO 14396, HP:
    75.3 HP
    Power SAE J1349, HP:
    74.2 hp
    Power SAE J1349, kW:
    55.4 kW
    Power SAE J1349, rpm:
    2,200 rpm
    Series:
    H270
    Series:
    H CompactLine
    Size of tyres, rear:
    AW 14.9-24 8 TL
    Slope angle, front:
    38 °
    Slope angle, rear:
    42 °
    Speed, transportation gear:
    0-12,5
    Speed, working gear, I:
    0-6,0
    Static linear load, front:
    22.4 kg/cm
    Tangential amplitude, oscillation:
    1.37 mm
    Total height with cab:
    2,925 mm
    Total length:
    4,409 mm
    Total width with cab:
    1,844 mm
    Turning radius, inside:
    3,310 mm
    Version:
    V3307-CR-T
    Wheel base:
    2,306 mm
